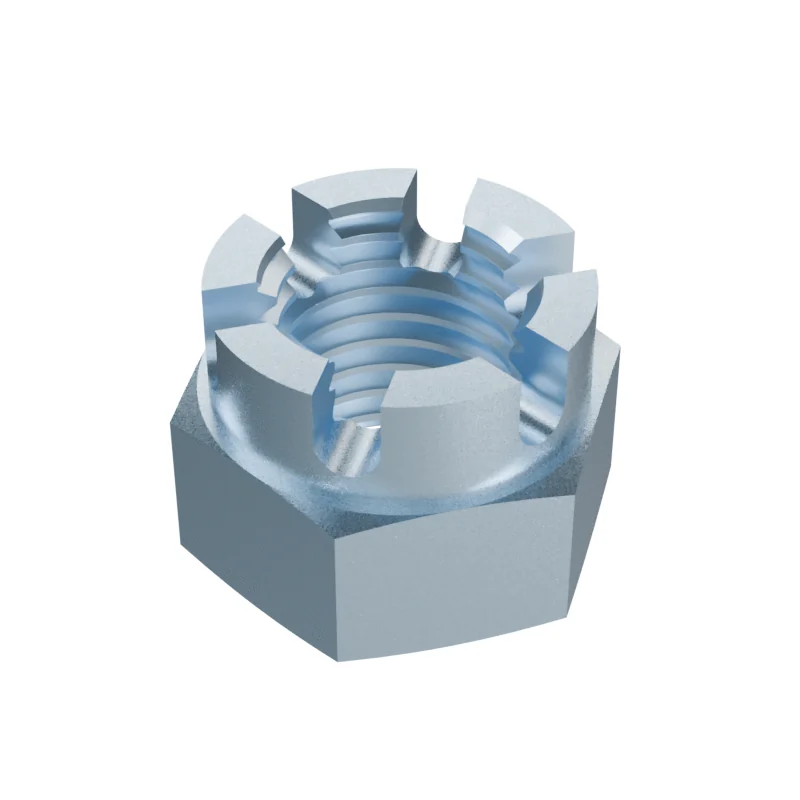

DIN 935 M24 Hexagon Slotted and Castle Nut
In stock in 22 material, grade and finish combinations.
Dimensions at M24
mm · DIN 935 · dimensions from DIN 935-1:2000-10 · current edition 2013-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M24 | – | – |
| P | Thread pitch | 3 | – | – |
| m | Nut height | 27 | – | – |
| s | Width across flats | – | – | 36 |
| e | Width across corners | – | 39.55 | – |
| Crown diameter | 34 | – | – | |
| Slot width | 5.5 | – | – | |
| Height to slot base | 19 | – | – | |
| Matching cotter pin | 5×40 | – | – |
- Approx. weight
- ≈ 131.00 kg per 1 000 pieces · Bare steel, before coating and packing.7.6 pieces per kg
