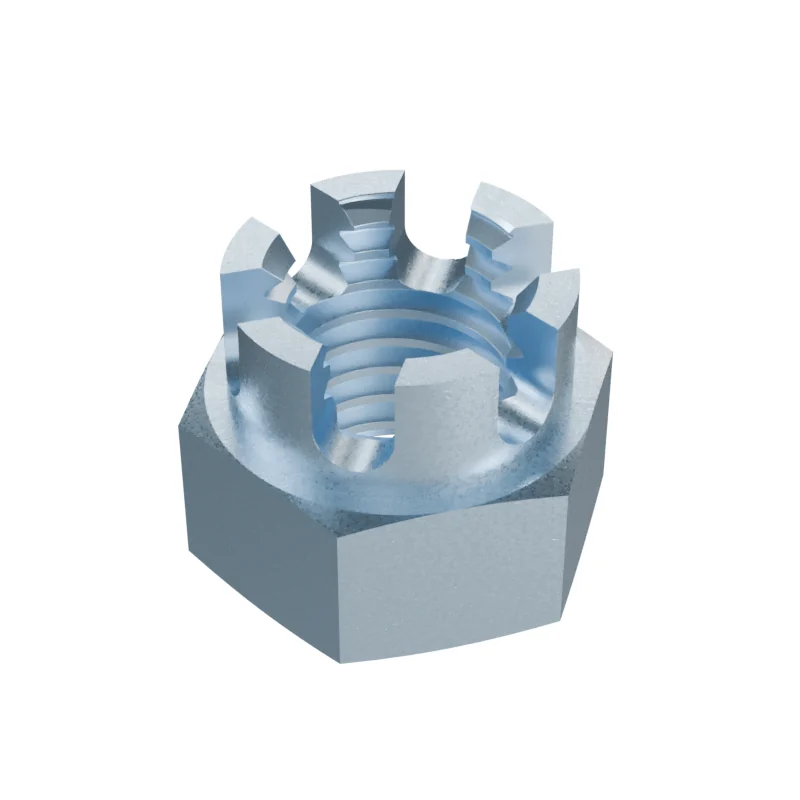

DIN 935 M12 Hexagon Slotted and Castle Nut
In stock in 22 material, grade and finish combinations.
Dimensions at M12
mm · DIN 935 · dimensions from DIN 935-1:2000-10 · current edition 2013-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| P | Thread pitch | 1.75 | – | – |
| m | Nut height | 15 | – | – |
| s | Width across flats | – | – | 18 |
| e | Width across corners | – | 20.03 | – |
| Crown diameter | 16 | – | – | |
| Slot width | 3.5 | – | – | |
| Height to slot base | 10 | – | – | |
| Matching cotter pin | 3.2×22 | – | – |
