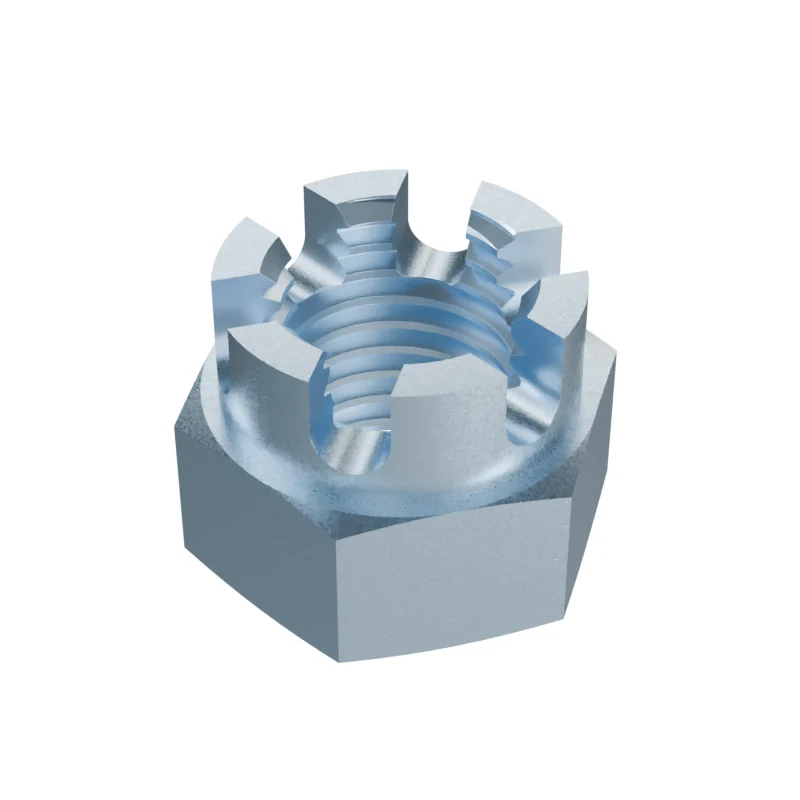

DIN 935 M16 Hexagon Slotted and Castle Nut
In stock in 22 material, grade and finish combinations.
Dimensions at M16
mm · DIN 935 · dimensions from DIN 935-1:2000-10 · current edition 2013-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M16 | – | – |
| P | Thread pitch | 2 | – | – |
| m | Nut height | 19 | – | – |
| s | Width across flats | – | – | 24 |
| e | Width across corners | – | 26.75 | – |
| Crown diameter | 22 | – | – | |
| Slot width | 4.5 | – | – | |
| Height to slot base | 13 | – | – | |
| Matching cotter pin | 4×28 | – | – |
- Approx. weight
- ≈ 38.90 kg per 1 000 pieces · Bare steel, before coating and packing.25.7 pieces per kg
