Socket Set Screw Cone Point

A headless screw tightened with a hex key; its sharp cone tip sits in a small drilled dimple on the shaft. The dimple guides the tip to center the screw, so the shaft is held without shifting. Install by tightening with a hex key until the tip is fully seated in the dimple. Commonly used to secure pulleys, gears, and collars to shafts where permanent positioning is required.

In stockShips within 3 working daysMade to orderShips within 15 working days

M3 × 0.542 variantss1.5dt0.75max.e1.733min.
LengthmmMaterialGradeFinishStockMOQpcs≈ kg/ 1,000 pcsQuantitypcs
4Stainless SteelA2PassivatedIn stock2,0000.13
4Stainless SteelA2PlainIn stock2,0000.13
4Carbon Steel45HPlainIn stock2,0000.13
4Carbon Steel45HBlackenedIn stock2,0000.13
4Alloy Steel45HPlainIn stock2,0000.13
4Alloy Steel45HBlackenedIn stock2,0000.13
5Stainless SteelA2PassivatedIn stock2,0000.17
5Stainless SteelA2PlainIn stock2,0000.17
5Carbon Steel45HPlainIn stock2,0000.17
5Carbon Steel45HBlackenedIn stock2,0000.17
5Alloy Steel45HPlainIn stock2,0000.17
5Alloy Steel45HBlackenedIn stock2,0000.17
6Stainless SteelA2PassivatedIn stock2,0000.21
6Stainless SteelA2PlainIn stock2,0000.21
6Carbon Steel45HPlainIn stock2,0000.21
6Carbon Steel45HBlackenedIn stock2,0000.21
6Alloy Steel45HPlainIn stock2,0000.21
6Alloy Steel45HBlackenedIn stock2,0000.21
8Stainless SteelA2PassivatedIn stock2,0000.29
8Stainless SteelA2PlainIn stock2,0000.29
8Carbon Steel45HPlainIn stock2,0000.29
8Carbon Steel45HBlackenedIn stock2,0000.29
8Alloy Steel45HPlainIn stock2,0000.29
8Alloy Steel45HBlackenedIn stock2,0000.29
10Stainless SteelA2PassivatedIn stock2,0000.37
10Stainless SteelA2PlainIn stock2,0000.37
10Carbon Steel45HPlainIn stock2,0000.37
10Carbon Steel45HBlackenedIn stock2,0000.37
10Alloy Steel45HPlainIn stock2,0000.37
10Alloy Steel45HBlackenedIn stock2,0000.37
12Stainless SteelA2PassivatedIn stock2,0000.45
12Stainless SteelA2PlainIn stock2,0000.45
12Carbon Steel45HPlainIn stock2,0000.45
12Carbon Steel45HBlackenedIn stock2,0000.45
12Alloy Steel45HPlainIn stock2,0000.45
12Alloy Steel45HBlackenedIn stock2,0000.45
16Stainless SteelA2PassivatedIn stock2,0000.62
16Stainless SteelA2PlainIn stock2,0000.62
16Carbon Steel45HPlainIn stock2,0000.61
16Carbon Steel45HBlackenedIn stock2,0000.61
16Alloy Steel45HPlainIn stock2,0000.61
16Alloy Steel45HBlackenedIn stock2,0000.61
Need another length in M3?Made to order · ask for a price
M4 × 0.748 variantss2dt1max.e2.303min.
LengthmmMaterialGradeFinishStockMOQpcs≈ kg/ 1,000 pcsQuantitypcs
4Stainless SteelA2PassivatedIn stock2,0000.18
4Stainless SteelA2PlainIn stock2,0000.18
4Carbon Steel45HPlainIn stock2,0000.18
4Carbon Steel45HBlackenedIn stock2,0000.18
4Alloy Steel45HPlainIn stock2,0000.18
4Alloy Steel45HBlackenedIn stock2,0000.18
5Stainless SteelA2PassivatedIn stock2,0000.26
5Stainless SteelA2PlainIn stock2,0000.26
5Carbon Steel45HPlainIn stock2,0000.26
5Carbon Steel45HBlackenedIn stock2,0000.26
5Alloy Steel45HPlainIn stock2,0000.26
5Alloy Steel45HBlackenedIn stock2,0000.26
6Stainless SteelA2PassivatedIn stock2,0000.34
6Stainless SteelA2PlainIn stock2,0000.34
6Carbon Steel45HPlainIn stock2,0000.34
6Carbon Steel45HBlackenedIn stock2,0000.34
6Alloy Steel45HPlainIn stock2,0000.34
6Alloy Steel45HBlackenedIn stock2,0000.34
8Stainless SteelA2PassivatedIn stock2,0000.51
8Stainless SteelA2PlainIn stock2,0000.51
8Carbon Steel45HPlainIn stock2,0000.50
8Carbon Steel45HBlackenedIn stock2,0000.50
8Alloy Steel45HPlainIn stock2,0000.50
8Alloy Steel45HBlackenedIn stock2,0000.50
10Stainless SteelA2PassivatedIn stock2,0000.67
10Stainless SteelA2PlainIn stock2,0000.67
10Carbon Steel45HPlainIn stock2,0000.66
10Carbon Steel45HBlackenedIn stock2,0000.66
10Alloy Steel45HPlainIn stock2,0000.66
10Alloy Steel45HBlackenedIn stock2,0000.66
12Stainless SteelA2PassivatedIn stock2,0000.83
12Stainless SteelA2PlainIn stock2,0000.83
12Carbon Steel45HPlainIn stock2,0000.82
12Carbon Steel45HBlackenedIn stock2,0000.82
12Alloy Steel45HPlainIn stock2,0000.82
12Alloy Steel45HBlackenedIn stock2,0000.82
16Stainless SteelA2PassivatedIn stock2,0001.15
16Stainless SteelA2PlainIn stock2,0001.15
16Carbon Steel45HPlainIn stock2,0001.14
16Carbon Steel45HBlackenedIn stock2,0001.14
16Alloy Steel45HPlainIn stock2,0001.14
16Alloy Steel45HBlackenedIn stock2,0001.14
20Stainless SteelA2PassivatedIn stock2,0001.47
20Stainless SteelA2PlainIn stock2,0001.47
20Carbon Steel45HPlainIn stock2,0001.46
20Carbon Steel45HBlackenedIn stock2,0001.46
20Alloy Steel45HPlainIn stock2,0001.46
20Alloy Steel45HBlackenedIn stock2,0001.46
Need another length in M4?Made to order · ask for a price
M5 × 0.848 variantss2.5dt1.25max.e2.873min.
LengthmmMaterialGradeFinishStockMOQpcs≈ kg/ 1,000 pcsQuantitypcs
5Stainless SteelA2PassivatedIn stock2,0000.37
5Stainless SteelA2PlainIn stock2,0000.37
5Carbon Steel45HPlainIn stock2,0000.37
5Carbon Steel45HBlackenedIn stock2,0000.37
5Alloy Steel45HPlainIn stock2,0000.37
5Alloy Steel45HBlackenedIn stock2,0000.37
6Stainless SteelA2PassivatedIn stock2,0000.49
6Stainless SteelA2PlainIn stock2,0000.49
6Carbon Steel45HPlainIn stock2,0000.49
6Carbon Steel45HBlackenedIn stock2,0000.49
6Alloy Steel45HPlainIn stock2,0000.49
6Alloy Steel45HBlackenedIn stock2,0000.49
8Stainless SteelA2PassivatedIn stock2,0000.74
8Stainless SteelA2PlainIn stock2,0000.74
8Carbon Steel45HPlainIn stock2,0000.73
8Carbon Steel45HBlackenedIn stock2,0000.73
8Alloy Steel45HPlainIn stock2,0000.73
8Alloy Steel45HBlackenedIn stock2,0000.73
10Stainless SteelA2PassivatedIn stock2,0000.98
10Stainless SteelA2PlainIn stock2,0000.98
10Carbon Steel45HPlainIn stock2,0000.97
10Carbon Steel45HBlackenedIn stock2,0000.97
10Alloy Steel45HPlainIn stock2,0000.97
10Alloy Steel45HBlackenedIn stock2,0000.97
12Stainless SteelA2PassivatedIn stock2,0001.22
12Stainless SteelA2PlainIn stock2,0001.22
12Carbon Steel45HPlainIn stock2,0001.21
12Carbon Steel45HBlackenedIn stock2,0001.21
12Alloy Steel45HPlainIn stock2,0001.21
12Alloy Steel45HBlackenedIn stock2,0001.21
16Stainless SteelA2PassivatedIn stock2,0001.71
16Stainless SteelA2PlainIn stock2,0001.71
16Carbon Steel45HPlainIn stock2,0001.69
16Carbon Steel45HBlackenedIn stock2,0001.69
16Alloy Steel45HPlainIn stock2,0001.69
16Alloy Steel45HBlackenedIn stock2,0001.69
20Stainless SteelA2PassivatedIn stock2,0002.19
20Stainless SteelA2PlainIn stock2,0002.19
20Carbon Steel45HPlainIn stock2,0002.17
20Carbon Steel45HBlackenedIn stock2,0002.17
20Alloy Steel45HPlainIn stock2,0002.17
20Alloy Steel45HBlackenedIn stock2,0002.17
25Stainless SteelA2PassivatedIn stock2,0002.80
25Stainless SteelA2PlainIn stock2,0002.80
25Carbon Steel45HPlainIn stock2,0002.77
25Carbon Steel45HBlackenedIn stock2,0002.77
25Alloy Steel45HPlainIn stock2,0002.77
25Alloy Steel45HBlackenedIn stock2,0002.77
Need another length in M5?Made to order · ask for a price
M6 × 148 variantss3dt1.5max.e3.443min.
LengthmmMaterialGradeFinishStockMOQpcs≈ kg/ 1,000 pcsQuantitypcs
6Stainless SteelA2PassivatedIn stock1,0000.70
6Stainless SteelA2PlainIn stock1,0000.70
6Carbon Steel45HPlainIn stock1,0000.69
6Carbon Steel45HBlackenedIn stock1,0000.69
6Alloy Steel45HPlainIn stock1,0000.69
6Alloy Steel45HBlackenedIn stock1,0000.69
8Stainless SteelA2PassivatedIn stock1,0001.05
8Stainless SteelA2PlainIn stock1,0001.05
8Carbon Steel45HPlainIn stock1,0001.04
8Carbon Steel45HBlackenedIn stock1,0001.04
8Alloy Steel45HPlainIn stock1,0001.04
8Alloy Steel45HBlackenedIn stock1,0001.04
10Stainless SteelA2PassivatedIn stock1,0001.40
10Stainless SteelA2PlainIn stock1,0001.40
10Carbon Steel45HPlainIn stock1,0001.39
10Carbon Steel45HBlackenedIn stock1,0001.39
10Alloy Steel45HPlainIn stock1,0001.39
10Alloy Steel45HBlackenedIn stock1,0001.39
12Stainless SteelA2PassivatedIn stock1,0001.76
12Stainless SteelA2PlainIn stock1,0001.76
12Carbon Steel45HPlainIn stock1,0001.74
12Carbon Steel45HBlackenedIn stock1,0001.74
Need another length in M6?Made to order · ask for a price

354 combinations shown

Matching components

Hex Nut, Product Grade C ISO 4034Grade C Hex NutISO 4034 · M6–M36All-Metal Prevailing Torque Nut ISO 7042All-Metal Lock NutISO 7042 · M5–M36Hex Nut, Style 2 (High) ISO 4033High Hex NutISO 4033 · M5–M36

Questions

Which set screw point should I use?

Cup point for most shafts; it bites in slightly. Cone point for the firmest hold, seated in a drilled dimple. Flat point where the shaft must not be marked or the screw is adjusted often. Dog point to fit a hole or slot for exact positioning.

Order assurance

Reports & inspection

  • EN 10204 3.1 material certificate
  • Dimensional inspection report
  • Certificate of conformity
  • Mechanical test report
  • Chemical analysis report
  • Coating inspection report
  • Batch and lot traceability

Packaging & delivery

  • Bulk carton packing
  • Small boxes with outer cartons
  • Palletized shipment
  • Fumigation-free pallets
  • Inner poly bags
  • Buyer branding and labels

Related products

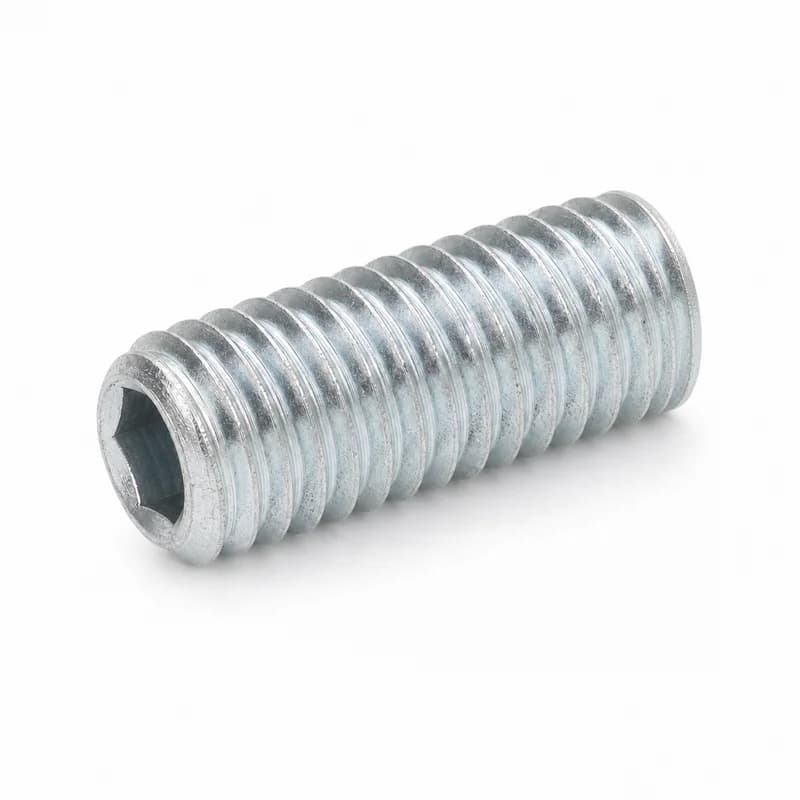

Dog Point Set Screw ISO 4028Dog Point Set ScrewISO 4028 · M3–M12Hexagon Socket Set Screw, Flat Point DIN 913Flat Point Set ScrewDIN 913 · M3–M16Hexagon Socket Set Screw, Cup Point DIN 916Cup Point Set ScrewDIN 916 · M3–M16Cone Point Socket Set Screw ASME B18.3Inch Cone Point Set ScrewASME B18.3 · #6-32UNC, #8-32UNC, #10-24UNC + 6 moreCup Point Socket Set Screw ASME B18.3Inch Cup Point Set ScrewASME B18.3 · #6-32UNC, #8-32UNC, #10-24UNC + 6 moreFlat Point Socket Set Screw ASME B18.3Inch Flat Point Set ScrewASME B18.3 · #6-32UNC, #8-32UNC, #10-24UNC + 6 more
