DIN 976-1 M12 x 150 Threaded Rod
In stock in 16 material, grade and finish combinations.
Dimensions at M12 x 150
mm · DIN 976-1 · current edition 2016-09| Dimension | Nominal | Min | Max | DIN 975 | |
|---|---|---|---|---|---|
| d | Thread size | M12 | – | – | M12 |
| P | Thread pitch | 1.75 | – | – | 1.75 |
| lt | Length | 150 | – | – | 150 |
- DIN 975
- Values in bold differ from DIN 976-1.
- Length
- 150 mm · 149.2–150.8 mm to DIN 976-1
- Approx. weight
- ≈ 109.00 kg per 1 000 pieces · Bare steel, before coating and packing.9.2 pieces per kg
Other lengths in M12

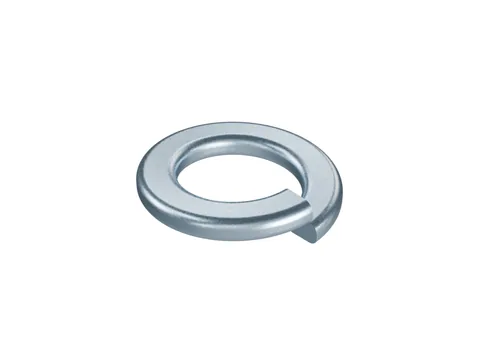

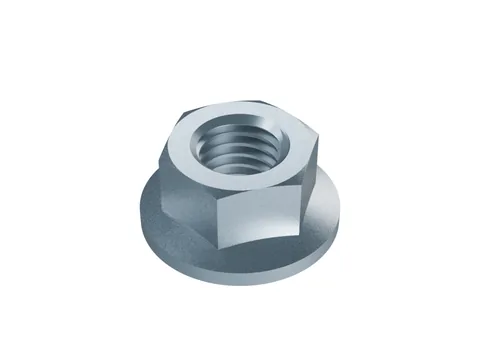

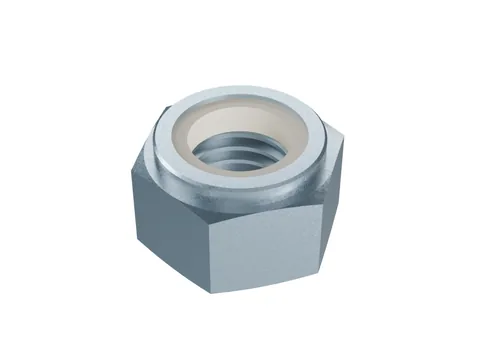

All 69 sizes of Threaded StudParts that mate with M12
StandardsDIN 976-1DIN 975GB/T 15389All sizes
