DIN 439 M3 Thin Hex Nut
In stock in 14 material, grade and finish combinations.
Dimensions at M3
mm · DIN 439 · 1987-10 · withdrawn| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M3 | – | – |
| P | Thread pitch | 0.5 | – | – |
| s | Width across flats | – | – | 5.5 |
| e | Width across corners | – | 6.01 | – |
| m | Nut height | 1.8 | – | – |
| Approx. mass | 0.29 | – | – |
- Approx. weight
- ≈ 0.29 kg per 1 000 pieces · Bare steel, before coating and packing.3448 pieces per kg

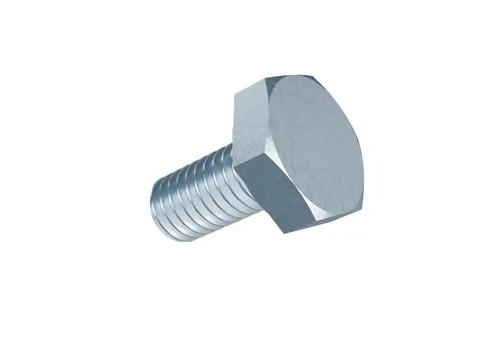

Parts that mate with M3
