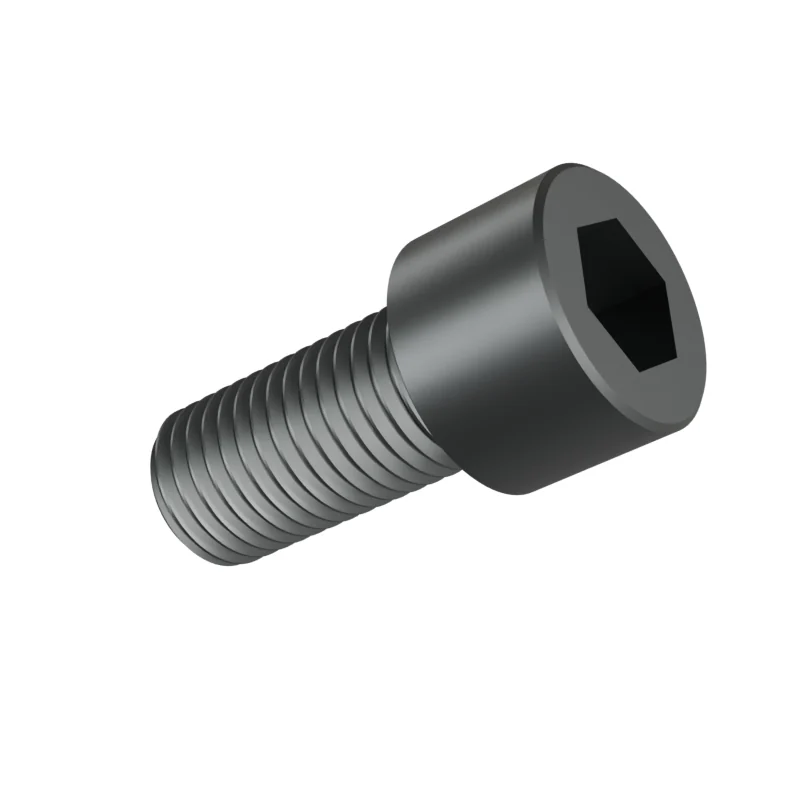

DIN 912 M24 x 50 Socket Head Cap Screw
In stock in 20 material, grade and finish combinations.
Dimensions at M24 x 50
mm · DIN 912 · 1983-12 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 4762 | |
|---|---|---|---|---|---|
| d | Thread size | M24 | – | – | M24 |
| P | Thread pitch | 3 | – | – | 3 |
| l | Length | 50 | – | – | 50 |
| s | Hex socket size | 19 | – | – | 19 |
| dk | Head diameter | 36 | – | – | 36 |
| k | Head height | 24 | – | – | 24 |
| b | Thread length | 60 | – | – | 60 |
- ISO 4762
- Values in bold differ from DIN 912.
- Length under head
- 50 mm · 49.5–50.5 mm to DIN 912 product grade A
- Approx. weight
- ≈ 310.79 kg per 1 000 pieces · Bare steel, before coating and packing.3.2 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine25 mm
Clearance hole · medium26 mm
Clearance hole · coarse28 mm
Tap drill21 mm
