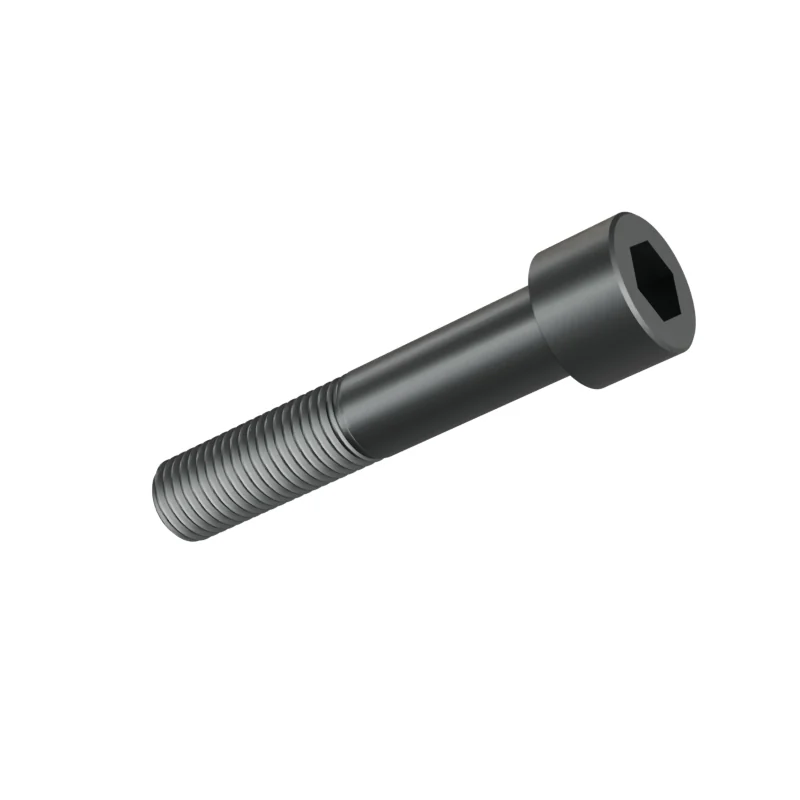

DIN 912 M24 x 130 Socket Head Cap Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M24 x 130
mm · DIN 912 · 1983-12 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 4762 | |
|---|---|---|---|---|---|
| d | Thread size | M24 | – | – | M24 |
| P | Thread pitch | 3 | – | – | 3 |
| l | Length | 130 | – | – | 130 |
| s | Hex socket size | 19 | – | – | 19 |
| dk | Head diameter | 36 | – | – | 36 |
| k | Head height | 24 | – | – | 24 |
| b | Thread length | 60 | – | – | 60 |
- ISO 4762
- Values in bold differ from DIN 912.
- Length under head
- 130 mm · 129.2–130.8 mm to DIN 912 product grade A
- Approx. weight
- ≈ 550.64 kg per 1 000 pieces · Bare steel, before coating and packing.1.8 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine25 mm
Clearance hole · medium26 mm
Clearance hole · coarse28 mm
Tap drill21 mm
