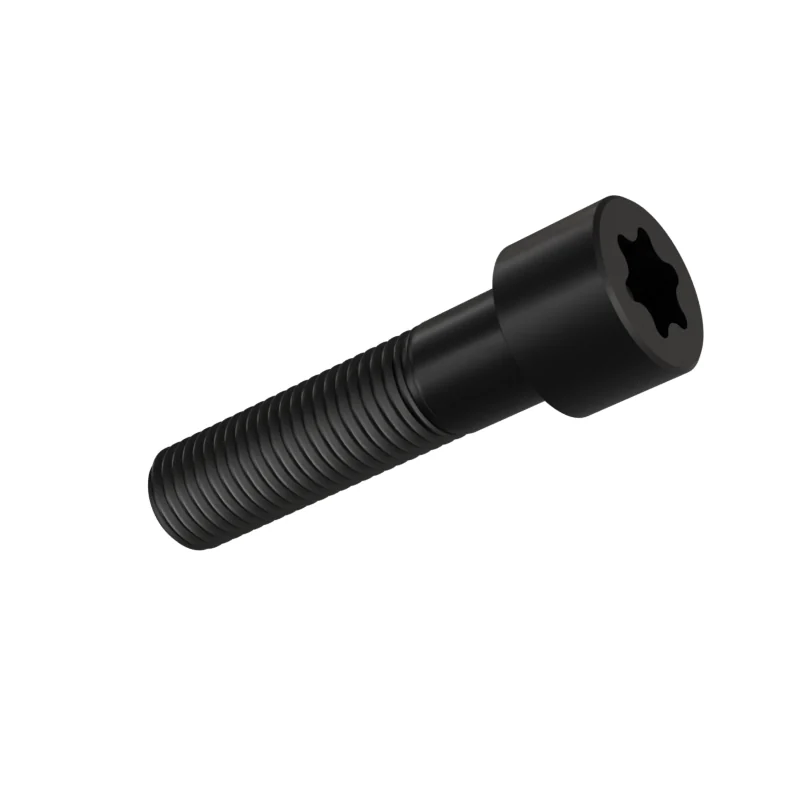

ISO 14579 M16 x 65 Socket Head Cap Screw
In stock in 10 material, grade and finish combinations.
Dimensions at M16 x 65
mm · ISO 14579 · 2011 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M16 | – | – |
| P | Thread pitch | 2 | – | – |
| l | Length | 65 | – | – |
| dk | Head diameter | 24 | 23.67 | – |
| k | Head height | 16 | 15.57 | – |
| b | Thread length | 44 | – | – |
| r | Radius | – | 0.6 | – |
| Recess number | 70 | – | – | |
| A | Hexalobular socket A (ref) | 15.7 | – | – |
| t | Socket depth | – | 6.62 | 7.01 |
- Length under head
- 65 mm · 64.4–65.6 mm to ISO 14579 product grade A
- Approx. weight
- ≈ 134.28 kg per 1 000 pieces · Bare steel, before coating and packing.7.4 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine17 mm
Clearance hole · medium17.5 mm
Clearance hole · coarse18.5 mm
Tap drill14 mm
