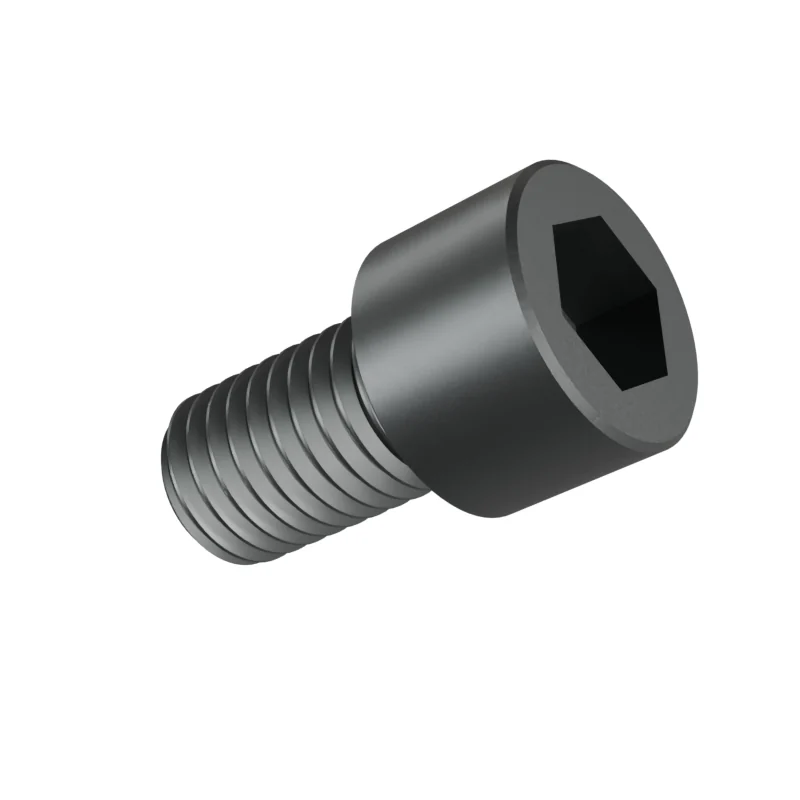

DIN 912 M12 x 20 Socket Head Cap Screw
In stock in 34 material, grade and finish combinations.
Dimensions at M12 x 20
mm · DIN 912 · 1983-12 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 4762 | |
|---|---|---|---|---|---|
| d | Thread size | M12 | – | – | M12 |
| P | Thread pitch | 1.75 | – | – | 1.75 |
| l | Length | 20 | – | – | 20 |
| s | Hex socket size | 10 | – | – | 10 |
| dk | Head diameter | 18 | – | – | 18 |
| k | Head height | 12 | – | – | 12 |
| b | Thread length | 36 | – | – | 36 |
- ISO 4762
- Values in bold differ from DIN 912.
- Length under head
- 20 mm · 19.58–20.42 mm to DIN 912 product grade A
- Approx. weight
- ≈ 34.66 kg per 1 000 pieces · Bare steel, before coating and packing.28.8 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine13 mm
Clearance hole · medium13.5 mm
Clearance hole · coarse14.5 mm
Tap drill10.2 mm
