FASTENER STANDARD
M8 x 25

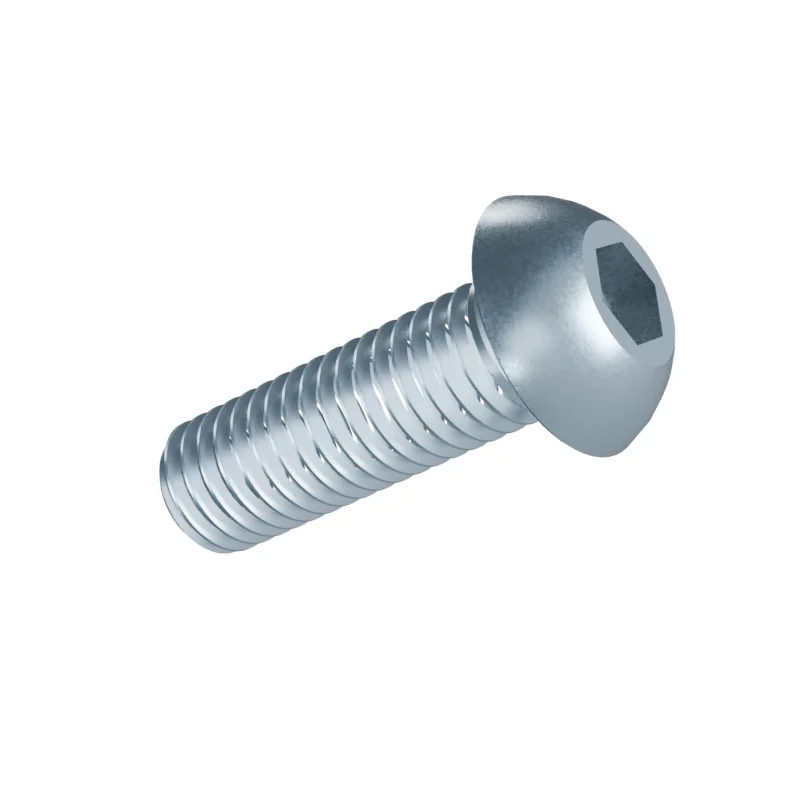

Hexagon Socket Button Head Screw — ISO 7380-1 / GB/T 70.2 / ISO 7380-2
M8 x 25 is listed in the confirmed supply specifications of the products shown below. Dimensions are referenced against ISO 7380-1 / GB/T 70.2 / ISO 7380-2; where these standards differ, both values are shown so the correct one can be confirmed before ordering. Packing quantity, stock status and mechanical property class are confirmed in the quotation. Column symbols: P = thread pitch; dk = head diameter; k = head height.
Edition to confirm · Specification| Standard | Status | P (mm) | socket (mm) | dk (mm) | k (mm) | dc (mm) | dcMin (mm) | dkMin (mm) | kMin (mm) | socketAcrossCornersMin (mm) | socketDepthMax (mm) | socketDepthMin (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ISO 7380-1 | Current | 1.25 | 5 | 14 | 4.4 | - | - | - | - | - | - | - |
| GB/T 70.2 | Current | 1.25 | 5 | 14 | 4.4 | - | - | - | - | - | - | - |
