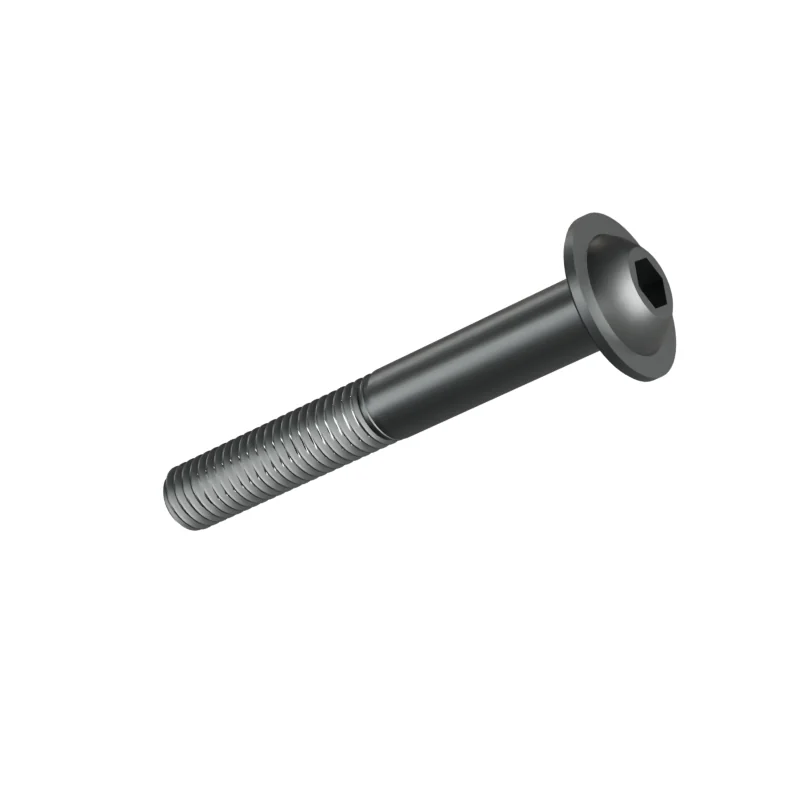

ISO 7380-2 M8 x 60 Button Head Socket Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M8 x 60
mm · ISO 7380-2 · dimensions from 2011 · current edition 2022| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M8 | – | – |
| P | Thread pitch | 1.25 | – | – |
| l | Length | 60 | – | – |
| s | Hex socket size | 5 | – | – |
| dk | Head diameter | 13.2 | 12.8 | – |
| k | Head height | 4.4 | 4.1 | – |
| b | Thread length | 28 | – | – |
| dc | Flange diameter | 17.8 | – | – |
| dc | Bearing diameter | – | 17.1 | – |
| e | Socket across corners | – | 5.723 | – |
| t | Socket depth | – | 2.6 | 3.05 |
- Length under head
- 60 mm · 59.4–60.6 mm to ISO 7380-2
- Approx. weight
- ≈ 22.72 kg per 1 000 pieces · Bare steel, before coating and packing.44.0 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine8.4 mm
Clearance hole · medium9 mm
Clearance hole · coarse10 mm
Tap drill6.8 mm
Other lengths in M8
All 72 sizes of Button Head Socket Screw with FlangeParts that mate with M8
Nearby sizesM10 x 20
