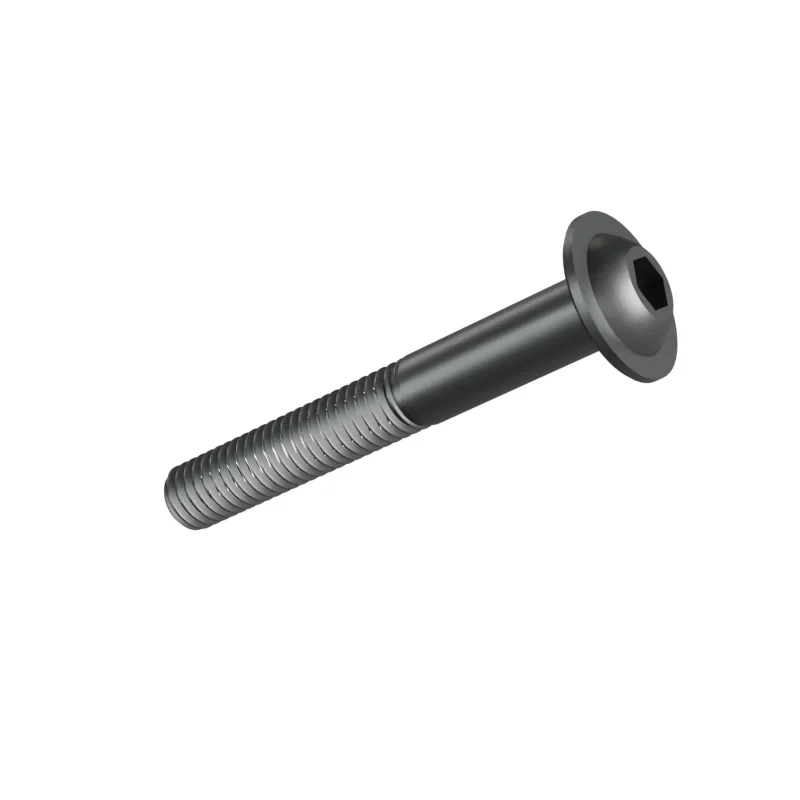

ISO 7380-2 M6 x 45 Button Head Socket Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M6 x 45
mm · ISO 7380-2 · dimensions from 2011 · current edition 2022| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M6 | – | – |
| P | Thread pitch | 1 | – | – |
| l | Length | 45 | – | – |
| s | Hex socket size | 4 | – | – |
| dk | Head diameter | 10 | 9.6 | – |
| k | Head height | 3.3 | 3 | – |
| b | Thread length | 24 | – | – |
| dc | Flange diameter | 13.6 | – | – |
| dc | Bearing diameter | – | 12.9 | – |
| e | Socket across corners | – | 4.583 | – |
| t | Socket depth | – | 2.08 | 2.26 |
- Length under head
- 45 mm · 44.5–45.5 mm to ISO 7380-2
- Approx. weight
- ≈ 9.50 kg per 1 000 pieces · Bare steel, before coating and packing.105 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
Other lengths in M6
All 72 sizes of Button Head Socket Screw with FlangeParts that mate with M6
Nearby sizesM8 x 16
