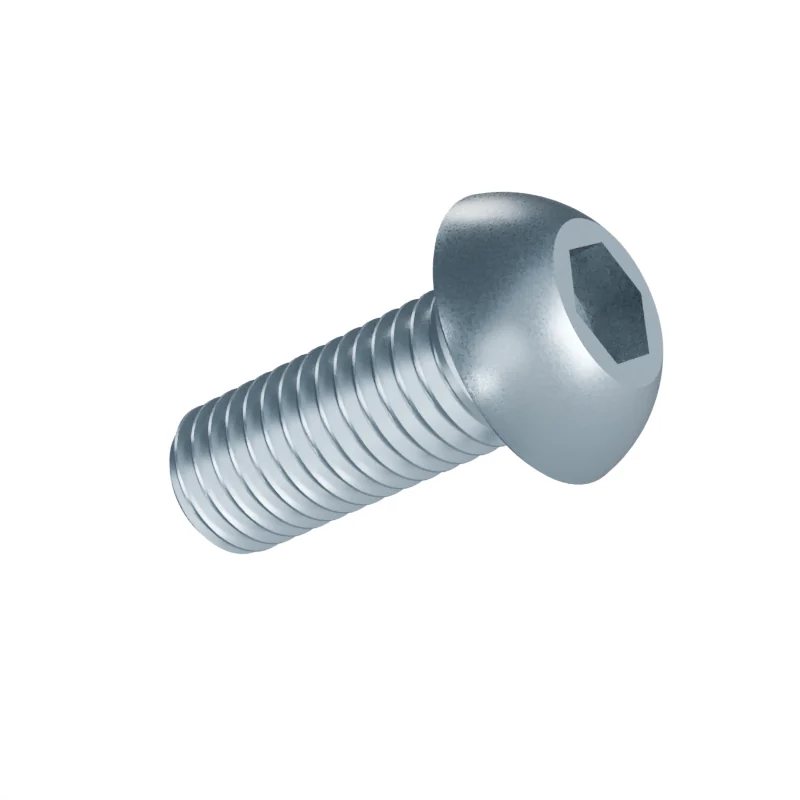

ISO 7380-1 M12 x 30 Button Head Socket Screw
In stock in 17 material, grade and finish combinations.
Dimensions at M12 x 30
mm · ISO 7380-1 · dimensions from 2011 · current edition 2022| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| P | Thread pitch | 1.75 | – | – |
| l | Length | 30 | – | – |
| s | Hex socket size | 8 | – | – |
| dk | Head diameter | 21 | – | – |
| k | Head height | 6.6 | – | – |
| b | Thread length | 36 | – | – |
- Length under head
- 30 mm · 29.58–30.42 mm to ISO 7380-1
- Approx. weight
- ≈ 35.54 kg per 1 000 pieces · Bare steel, before coating and packing.28.1 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine13 mm
Clearance hole · medium13.5 mm
Clearance hole · coarse14.5 mm
Tap drill10.2 mm
