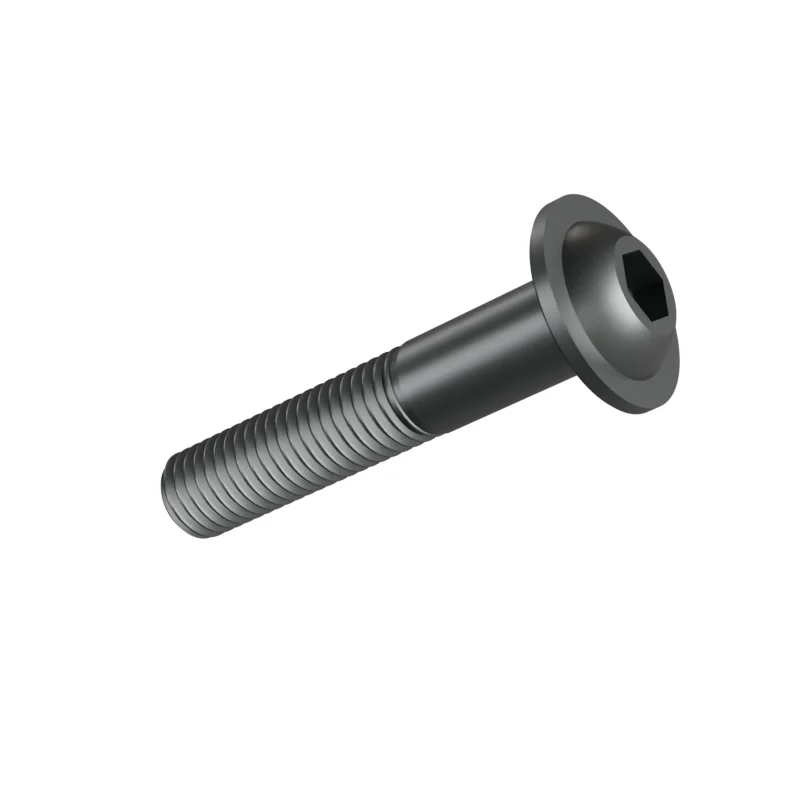

ISO 7380-2 M12 x 65 Button Head Socket Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M12 x 65
mm · ISO 7380-2 · dimensions from 2011 · current edition 2022| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| P | Thread pitch | 1.75 | – | – |
| l | Length | 65 | – | – |
| s | Hex socket size | 8 | – | – |
| dk | Head diameter | 19.4 | 18.9 | – |
| k | Head height | 6.6 | 6.24 | – |
| b | Thread length | 36 | – | – |
| dc | Flange diameter | 26 | – | – |
| dc | Bearing diameter | – | 25.16 | – |
| e | Socket across corners | – | 9.149 | – |
| t | Socket depth | – | 4.16 | 4.61 |
- Length under head
- 65 mm · 64.4–65.6 mm to ISO 7380-2
- Approx. weight
- ≈ 58.99 kg per 1 000 pieces · Bare steel, before coating and packing.17.0 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine13 mm
Clearance hole · medium13.5 mm
Clearance hole · coarse14.5 mm
Tap drill10.2 mm
