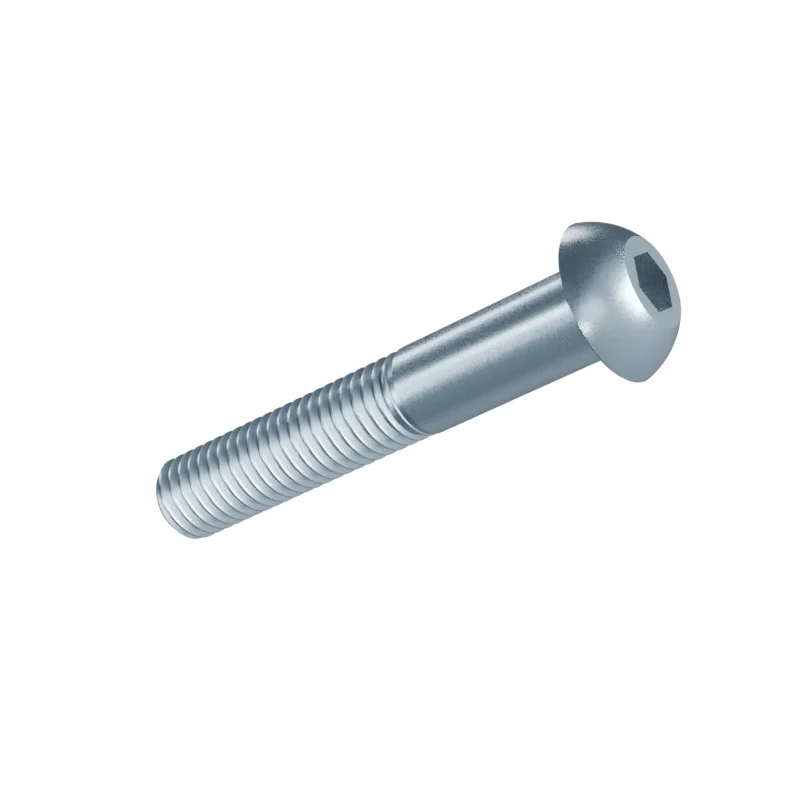

ISO 7380-1 M10 x 60 Button Head Socket Screw
In stock in 17 material, grade and finish combinations.
Dimensions at M10 x 60
mm · ISO 7380-1 · dimensions from 2011 · current edition 2022| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M10 | – | – |
| P | Thread pitch | 1.5 | – | – |
| l | Length | 60 | – | – |
| s | Hex socket size | 6 | – | – |
| dk | Head diameter | 17.5 | – | – |
| k | Head height | 5.5 | – | – |
| b | Thread length | 32 | – | – |
- Length under head
- 60 mm · 59.4–60.6 mm to ISO 7380-1
- Approx. weight
- ≈ 38.07 kg per 1 000 pieces · Bare steel, before coating and packing.26.3 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
