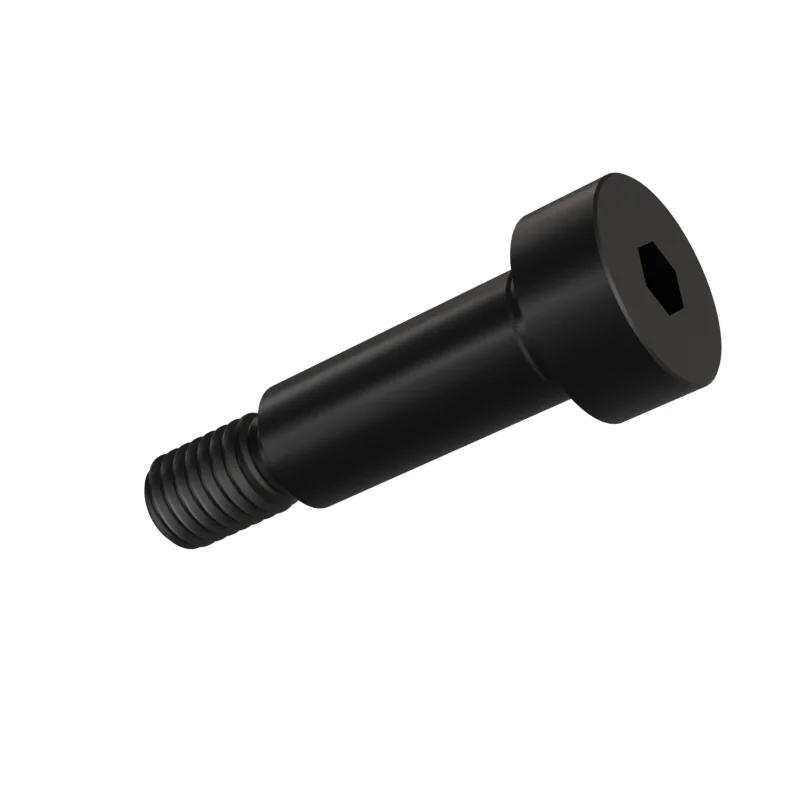

ISO 7379 M8×25 Socket Head Shoulder Screw3 combinations of material, property class and finish supplied in this size.
- Standard
- ISO 7379 · 1983
- Thread
- M8 · pitch 1.25 mm
- Length under head
- 25 mm
- Clearance / tap drill
- 8.4 / 9 / 10 mm · 6.8 mm
- Weight
- 9.17 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering109 pieces per kg
Order M8×25
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Alloy Steel | 12.9 | Blackened | — | |
| Alloy Steel | 12.9 | Plain | — | |
| Stainless Steel | A2-70 | Plain | — |
Dimensions at M8×25
| Dimension | Value |
|---|---|
| P | 1.25 mm |
| Weight | 9.17 kg / 1000 pcs |
| Pieces per kg | 109 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 8.4 / 9 / 10 mm |
| Tap drill | 6.8 mm |
