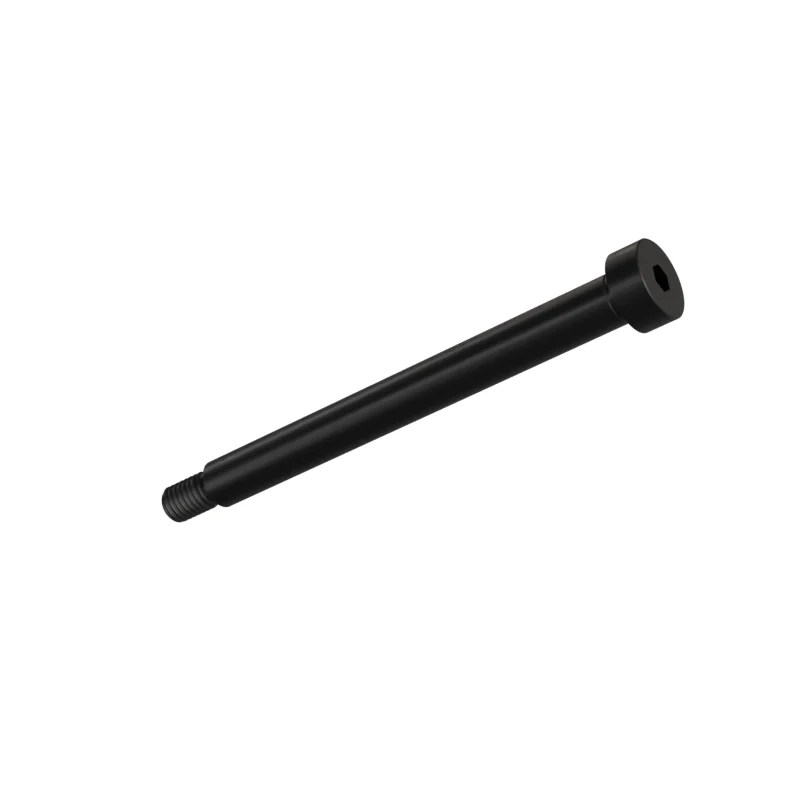

ISO 7379 M8 x 100 Socket Head Shoulder Screw
In stock in 3 material, grade and finish combinations.
Dimensions at M8 x 100
mm · ISO 7379 · 1983 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M8 | – | – |
| P | Thread pitch | 1.25 | – | – |
| l | Length | 100 | – | – |
| ds | Shoulder diameter | 10 | 9.951 | 9.987 |
| b | Effective thread length | – | 12.75 | 13.25 |
| dk | Head diameter | – | 15.73 | 16 |
| k | Head height | – | 6.78 | 7 |
| s | Hex socket size | 5 | – | – |
| t | Socket depth | – | 4.2 | – |
- Shoulder length
- 100 mm · 100–100.25 mm to ISO 7379 product grade A
- Approx. weight
- ≈ 76.21 kg per 1 000 pieces · Bare steel, before coating and packing.13.1 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine8.4 mm
Clearance hole · medium9 mm
Clearance hole · coarse10 mm
Tap drill6.8 mm
