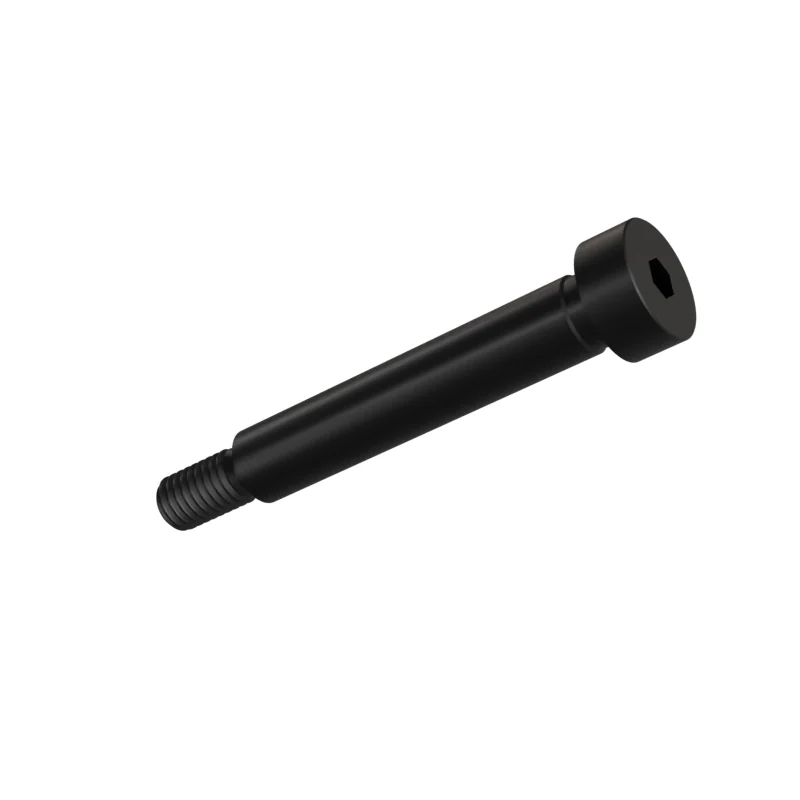

ISO 7379 M5 x 35 Socket Head Shoulder Screw
In stock in 2 material, grade and finish combinations.
Dimensions at M5 x 35
mm · ISO 7379 · 1983 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M5 | – | – |
| P | Thread pitch | 0.8 | – | – |
| l | Length | 35 | – | – |
| ds | Shoulder diameter | 6.5 | 6.451 | 6.487 |
| b | Effective thread length | – | 9.25 | 9.75 |
| dk | Head diameter | – | 9.78 | 10 |
| k | Head height | – | 4.32 | 4.5 |
| s | Hex socket size | 3 | – | – |
| t | Socket depth | – | 2.4 | – |
- Shoulder length
- 35 mm
- Approx. weight
- ≈ 12.95 kg per 1 000 pieces · Bare steel, before coating and packing.77.2 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine5.3 mm
Clearance hole · medium5.5 mm
Clearance hole · coarse5.8 mm
Tap drill4.2 mm
