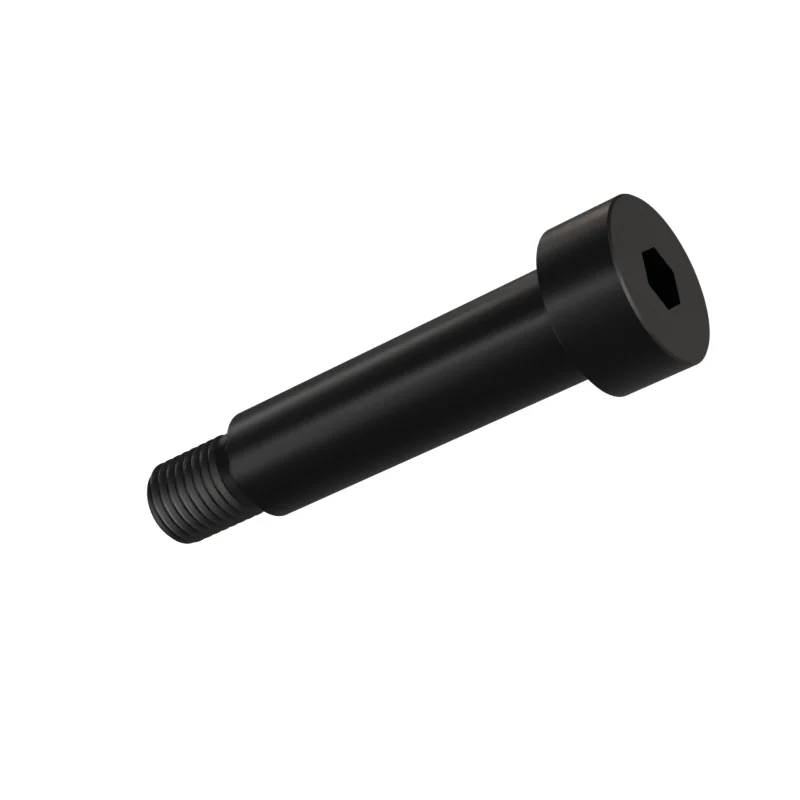

ISO 7379 M16 x 70 Socket Head Shoulder Screw
In stock in 2 material, grade and finish combinations.
Dimensions at M16 x 70
mm · ISO 7379 · 1983 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M16 | – | – |
| P | Thread pitch | 2 | – | – |
| l | Length | 70 | – | – |
| ds | Shoulder diameter | 20 | 19.928 | 19.98 |
| b | Effective thread length | – | 21.6 | 22.4 |
| dk | Head diameter | – | 29.67 | 30 |
| k | Head height | – | 13.73 | 14 |
| s | Hex socket size | 10 | – | – |
| t | Socket depth | – | 8.8 | – |
- Shoulder length
- 70 mm · 70–70.25 mm to ISO 7379 product grade A
- Approx. weight
- ≈ 274.18 kg per 1 000 pieces · Bare steel, before coating and packing.3.6 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine17 mm
Clearance hole · medium17.5 mm
Clearance hole · coarse18.5 mm
Tap drill14 mm
