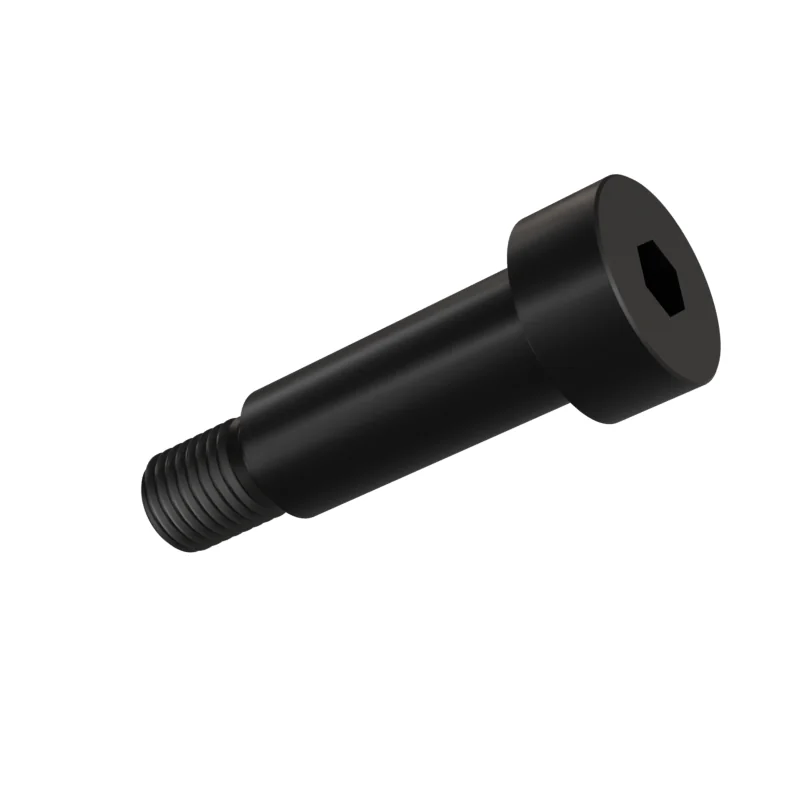

ISO 7379 M16×50 Socket Head Shoulder Screw2 combinations of material, property class and finish supplied in this size.

Standard
ISO 7379 · 1983
Thread
M16 · pitch 2 mm
Length under head
50 mm
Clearance / tap drill
17 / 17.5 / 18.5 mm · 14 mm
Weight
73.39 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering13.6 pieces per kg
skdkddslgP
Hexagon Socket Head Shoulder Screw ISO 7379View product
View in 3D
ISO 7379 dimension tablePDF · every size

Order M16×50

Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.

MaterialClassFinishQuantityNet weight
Alloy Steel12.9Blackened—
Alloy Steel12.9Plain—

Dimensions at M16×50

DimensionValue
P2 mm
Weight73.39 kg / 1000 pcs
Pieces per kg13.6

Plating adds thickness — state the finish on the order.

Holes for this thread

ISO 273 · ISO 2306
HoleDiameter
Clearance hole17 / 17.5 / 18.5 mm
Tap drill14 mm

Other lengths in M16

All sizes →
Sizekg per 1 000 pieces
M16×4058.71open
M16×4566.05open
M16×5073.39this page
M16×5580.73open
M16×6088.07open

M16 x 40M16 x 45M16 x 55M16 x 60M16 x 65M16 x 70M16 x 80M16 x 90M16 x 100M16 x 30M16 x 35

Parts that mate with M16

matched by thread and pitch
Hex Nut, Style 2 (High) ISO 4033ISO 4033NutHex Nut, Product Grade C ISO 4034ISO 4034NutHexagon Full Nut DIN 934DIN 934NutPlain Washer, Chamfered ISO 7090ISO 7090Washer

StandardsISO 7379All sizes

Quote ISO 7379 M16×50 Socket Head Shoulder Screw

Standard, size, material, finish, quantity and destination are enough to begin.
