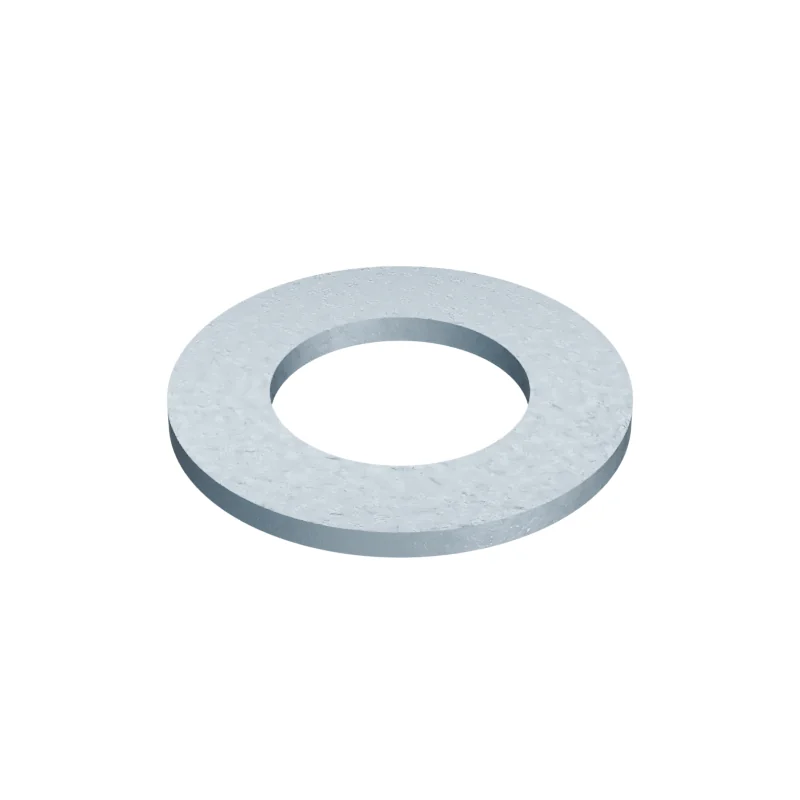

ISO 7092 M4 Small Series Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M4
mm · ISO 7092 · 2000 edition| Dimension | Nominal | Min | Max | DIN 433 | |
|---|---|---|---|---|---|
| d | Thread size | M4 | – | – | M4 |
| d1 | Inner diameter | 4.3 | – | 4.48 | 4.48 |
| d2 | Outer diameter | 8 | 7.64 | – | 7.64 |
| h | Washer thickness | 0.5 | 0.45 | 0.55 | 0.45–0.55 |
- DIN 433
- Values in bold differ from ISO 7092.
- Approx. weight
- ≈ 0.14 kg per 1 000 pieces · Bare steel, before coating and packing.7128 pieces per kg
