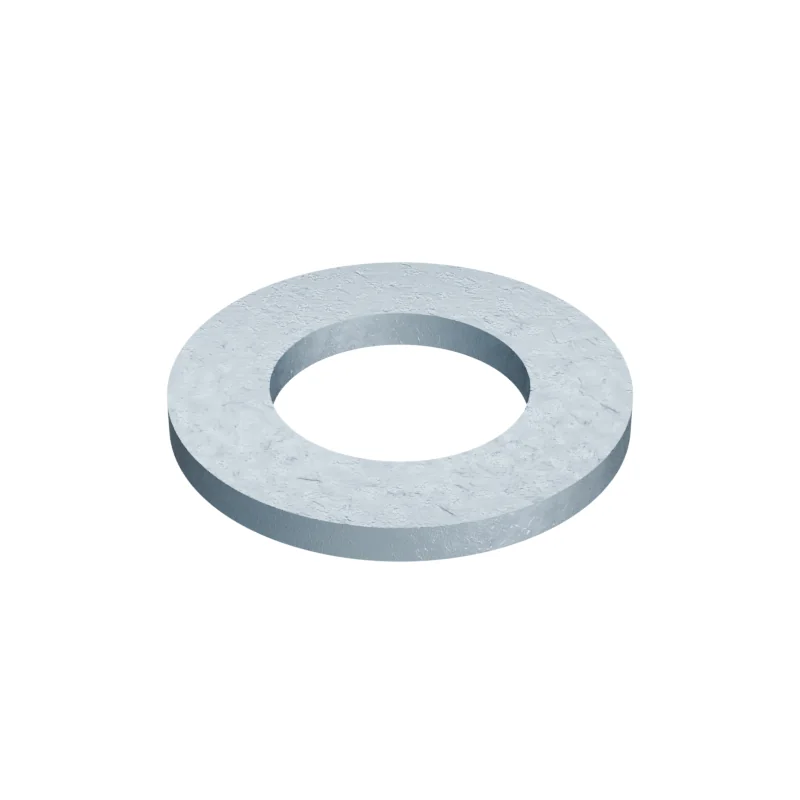

ISO 7092 M3 Small Series Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M3
mm · ISO 7092 · 2000 edition| Dimension | Nominal | Min | Max | DIN 433 | |
|---|---|---|---|---|---|
| d | Thread size | M3 | – | – | M3 |
| d1 | Inner diameter | 3.2 | – | 3.38 | 3.38 |
| d2 | Outer diameter | 6 | 5.7 | – | 5.7 |
| h | Washer thickness | 0.5 | 0.45 | 0.55 | 0.45–0.55 |
- DIN 433
- Values in bold differ from ISO 7092.
- Approx. weight
- ≈ 0.08 kg per 1 000 pieces · Bare steel, before coating and packing.12594 pieces per kg
