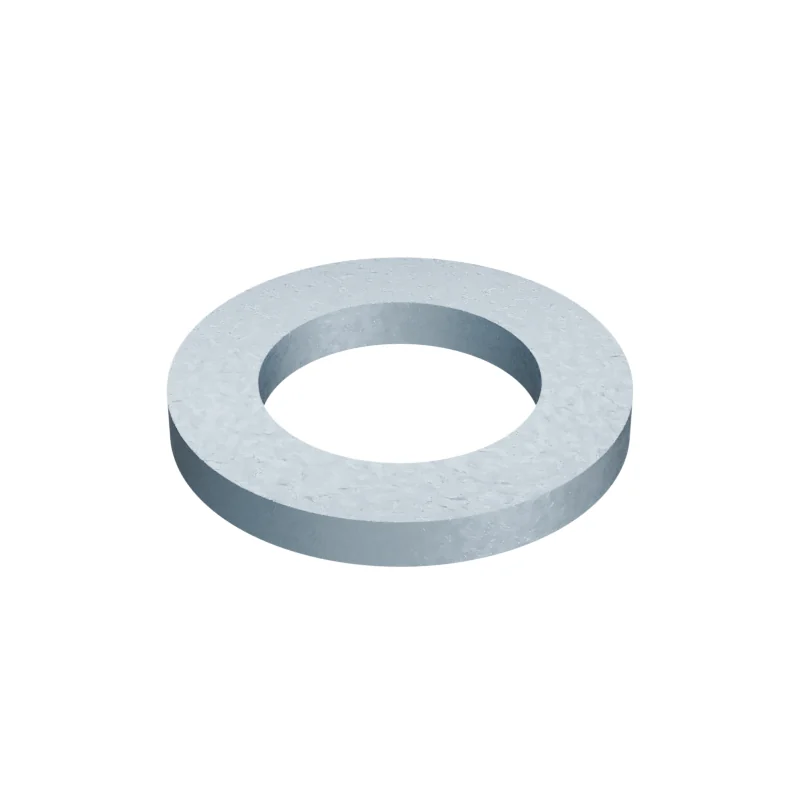

ISO 7092 M5 Small Series Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M5
mm · ISO 7092 · 2000 edition| Dimension | Nominal | Min | Max | DIN 433 | |
|---|---|---|---|---|---|
| d | Thread size | M5 | – | – | M5 |
| d1 | Inner diameter | 5.3 | – | 5.48 | 5.48 |
| d2 | Outer diameter | 9 | 8.64 | – | 8.64 |
| h | Washer thickness | 1 | 0.9 | 1.1 | 0.9–1.1 |
- DIN 433
- Values in bold differ from ISO 7092.
- Approx. weight
- ≈ 0.33 kg per 1 000 pieces · Bare steel, before coating and packing.3066 pieces per kg
