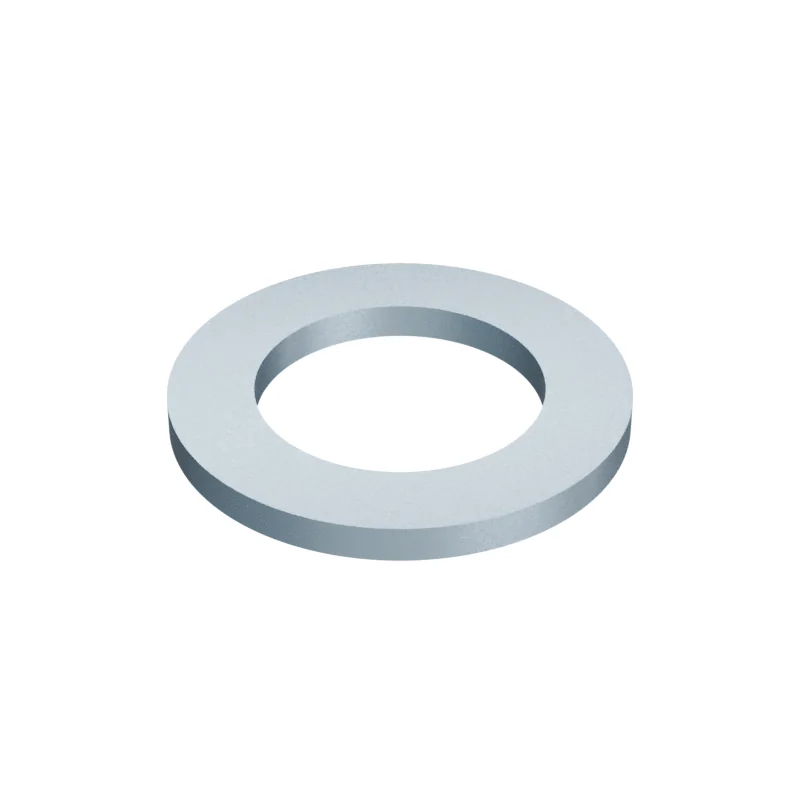

ISO 7092 M30 Small Series Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M30
mm · ISO 7092 · 2000 edition| Dimension | Nominal | Min | Max | DIN 433 | |
|---|---|---|---|---|---|
| d | Thread size | M30 | – | – | M30 |
| d1 | Inner diameter | 31 | – | 31.39 | 31.39 |
| d2 | Outer diameter | 50 | 49.38 | – | 49.38 |
| h | Washer thickness | 4 | 3.7 | 4.3 | 3.7–4.3 |
- DIN 433
- Values in bold differ from ISO 7092.
- Approx. weight
- ≈ 37.95 kg per 1 000 pieces · Bare steel, before coating and packing.26.3 pieces per kg
