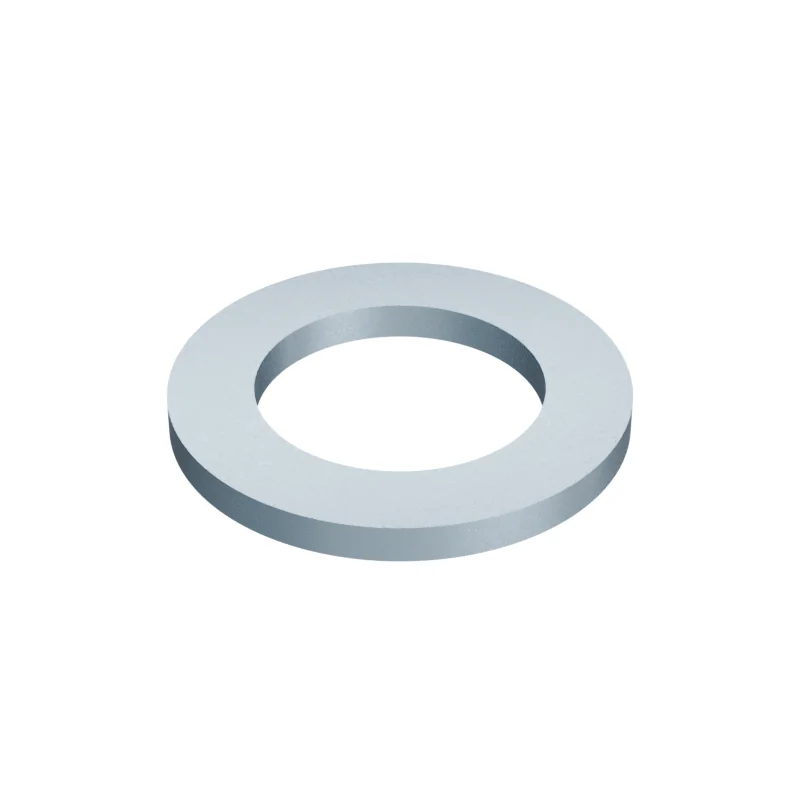

ISO 7092 M36 Small Series Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M36
mm · ISO 7092 · 2000 edition| Dimension | Nominal | Min | Max | DIN 433 | |
|---|---|---|---|---|---|
| d | Thread size | M36 | – | – | M36 |
| d1 | Inner diameter | 37 | – | 37.62 | 37.62 |
| d2 | Outer diameter | 60 | 58.8 | – | 56.8 |
| h | Washer thickness | 5 | 4.4 | 5.6 | 4.4–5.6 |
- DIN 433
- Values in bold differ from ISO 7092.
- Approx. weight
- ≈ 68.77 kg per 1 000 pieces · Bare steel, before coating and packing.14.5 pieces per kg
