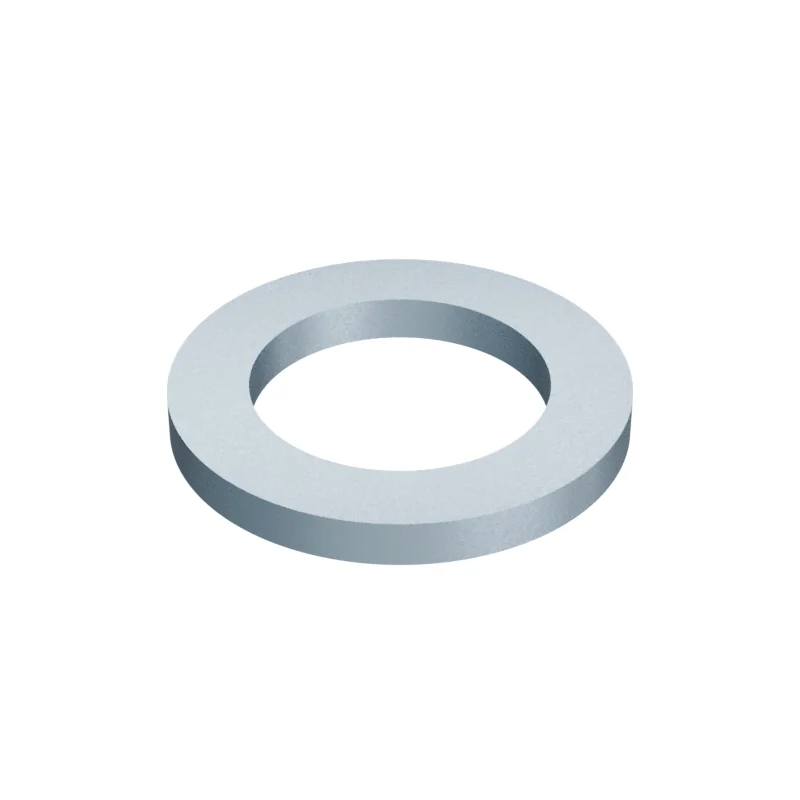

ISO 7092 M24 Small Series Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M24
mm · ISO 7092 · 2000 edition| Dimension | Nominal | Min | Max | DIN 433 | |
|---|---|---|---|---|---|
| d | Thread size | M24 | – | – | M24 |
| d1 | Inner diameter | 25 | – | 25.33 | 25.33 |
| d2 | Outer diameter | 39 | 38.38 | – | 38.38 |
| h | Washer thickness | 4 | 3.7 | 4.3 | 3.7–4.3 |
- DIN 433
- Values in bold differ from ISO 7092.
- Approx. weight
- ≈ 22.10 kg per 1 000 pieces · Bare steel, before coating and packing.45.3 pieces per kg
