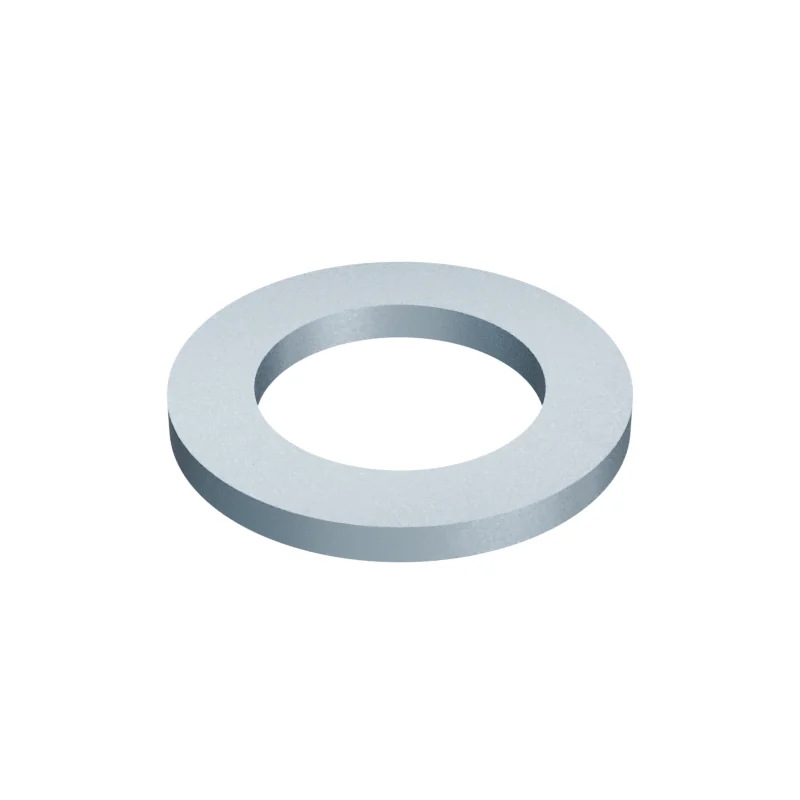

ISO 7092 M20 Small Series Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M20
mm · ISO 7092 · 2000 edition| Dimension | Nominal | Min | Max | DIN 433 | |
|---|---|---|---|---|---|
| d | Thread size | M20 | – | – | M20 |
| d1 | Inner diameter | 21 | – | 21.33 | 21.33 |
| d2 | Outer diameter | 34 | 33.38 | – | 33.38 |
| h | Washer thickness | 3 | 2.7 | 3.3 | 2.7–3.3 |
- DIN 433
- Values in bold differ from ISO 7092.
- Approx. weight
- ≈ 13.22 kg per 1 000 pieces · Bare steel, before coating and packing.75.6 pieces per kg
