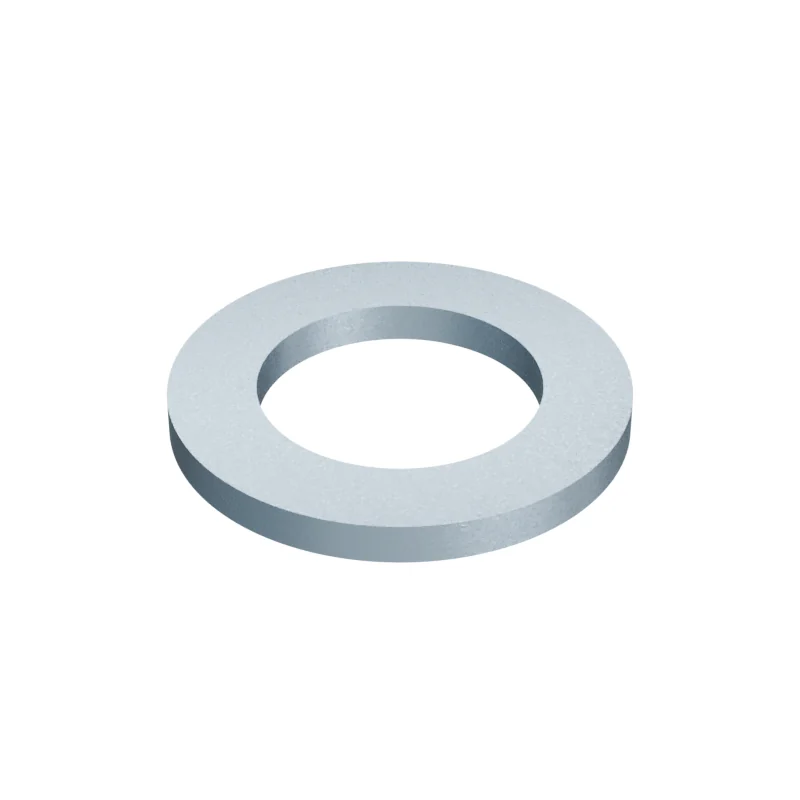

ISO 7092 M16 Small Series Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M16
mm · ISO 7092 · 2000 edition| Dimension | Nominal | Min | Max | DIN 433 | |
|---|---|---|---|---|---|
| d | Thread size | M16 | – | – | M16 |
| d1 | Inner diameter | 17 | – | 17.27 | 17.27 |
| d2 | Outer diameter | 28 | 27.48 | – | 27.48 |
| h | Washer thickness | 2.5 | 2.3 | 2.7 | 2.3–2.7 |
- DIN 433
- Values in bold differ from ISO 7092.
- Approx. weight
- ≈ 7.63 kg per 1 000 pieces · Bare steel, before coating and packing.131 pieces per kg
