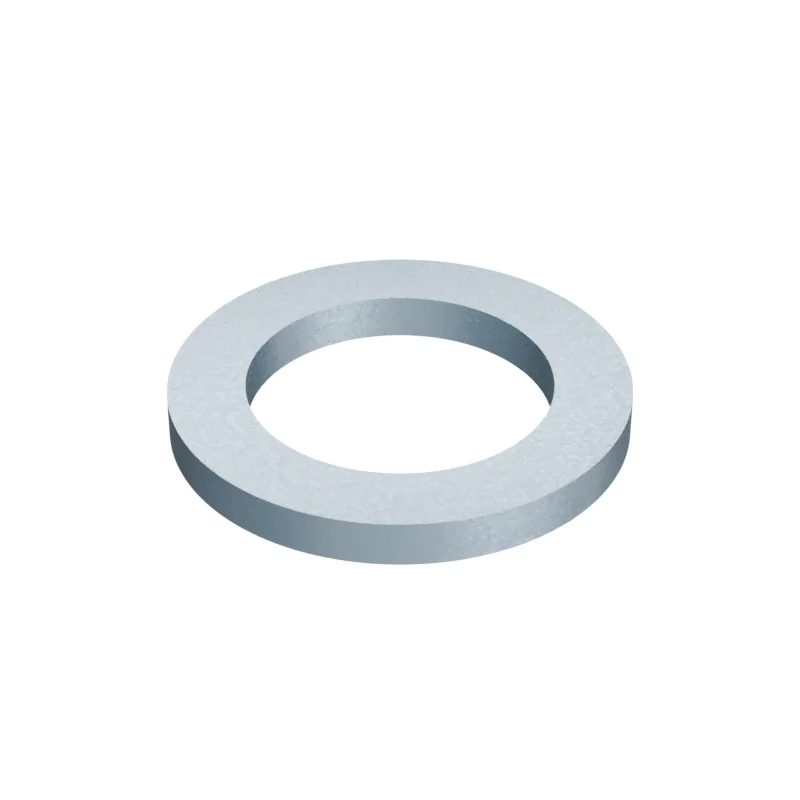

ISO 7092 M12 Small Series Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M12
mm · ISO 7092 · 2000 edition| Dimension | Nominal | Min | Max | DIN 433 | |
|---|---|---|---|---|---|
| d | Thread size | M12 | – | – | M12 |
| d1 | Inner diameter | 13 | – | 13.27 | 13.27 |
| d2 | Outer diameter | 20 | 19.48 | – | 19.48 |
| h | Washer thickness | 2 | 1.8 | 2.2 | 1.8–2.2 |
- DIN 433
- Values in bold differ from ISO 7092.
- Approx. weight
- ≈ 2.85 kg per 1 000 pieces · Bare steel, before coating and packing.351 pieces per kg
