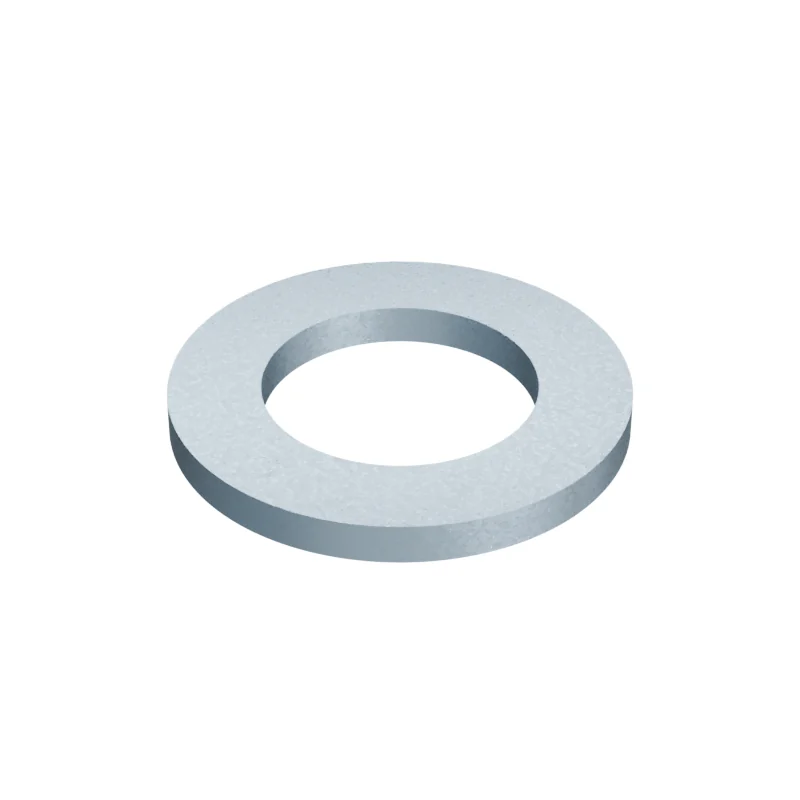

ISO 7092 M10 Small Series Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M10
mm · ISO 7092 · 2000 edition| Dimension | Nominal | Min | Max | DIN 433 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| d1 | Inner diameter | 10.5 | – | 10.77 | 10.77 |
| d2 | Outer diameter | 18 | 17.57 | – | 17.57 |
| h | Washer thickness | 1.6 | 1.4 | 1.8 | 1.4–1.8 |
- DIN 433
- Values in bold differ from ISO 7092.
- Approx. weight
- ≈ 2.11 kg per 1 000 pieces · Bare steel, before coating and packing.474 pieces per kg
