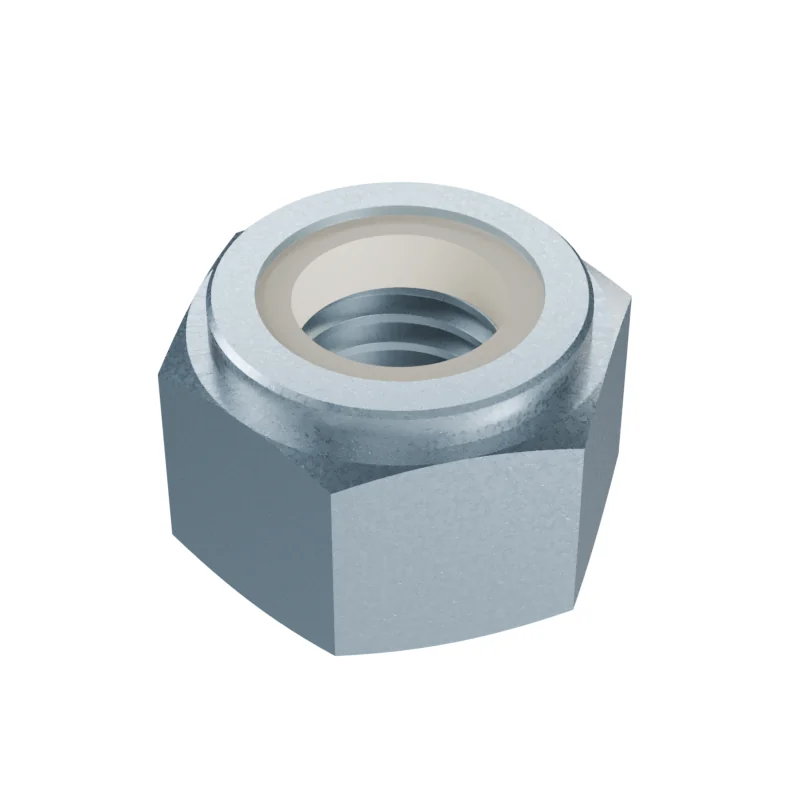

DIN 982 M10 Nylon Insert Lock Nut
In stock in 16 material, grade and finish combinations.
Dimensions at M10
mm · DIN 982 · 1987-05 · withdrawn| Dimension | Nominal | Min | Max | ISO 7040 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| P | Thread pitch | 1.5 | – | – | 1.5 |
| da | Underhead diameter | – | – | 10.8 | 10.8 |
| da | Clearance diameter | – | 10 | – | 10 |
| dw | Bearing diameter | – | 15.6 | – | 14.63 |
| e | Width across corners | – | 18.9 | – | 17.77 |
| h | Overall height | – | 11.14 | 11.5 | 11.2–11.9 |
| m | Thread height | – | 8.04 | – | 8.04 |
| m' | Wrenching height | – | 6.43 | – | 6.43 |
| s | Width across flats | – | 16.73 | 17 | 15.73–16 |
- ISO 7040
- Values in bold differ from DIN 982.
- Approx. weight
- ≈ 11.70 kg per 1 000 pieces · Bare steel, before coating and packing.85.5 pieces per kg
