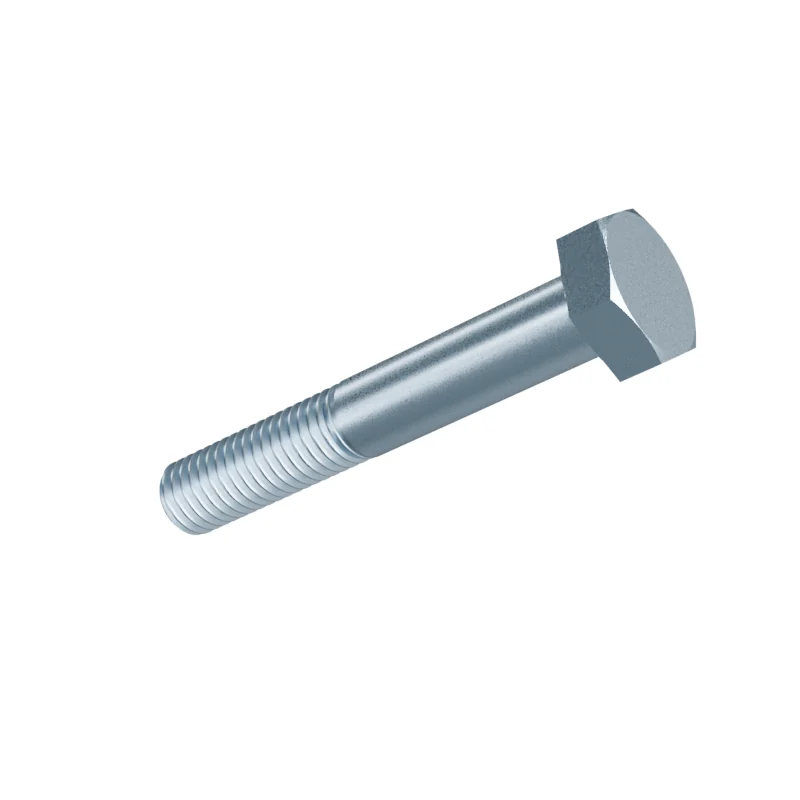

ISO 4016 M10×65 Partial Thread Hex Bolt12 combinations of material, property class and finish supplied in this size.

Standard: ISO 4016 · 2022
Thread: M10 · pitch 1.5 mm
Length under head: 65 mm · 63.5–66.5 mm to ISO 4016 product grade C
Drive: 16 mm spanner · e 17.59 mm
Head height: 6.4 mm
Clearance / tap drill: 10.5 / 11 / 12 mm · 8.5 mm
Weight: 47.52 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering21.0 pieces per kg

View in 3D

Order M10×65

Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.

Material	Class	Finish	Quantity	Net weight
Carbon Steel	4.6	Zinc Plated	Quantity of M10×65 · 4.6 · Zinc Platedpcs	—
Carbon Steel	4.6	Hot Dip Galvanized	Quantity of M10×65 · 4.6 · Hot Dip Galvanizedpcs	—
Carbon Steel	4.6	Dacromet	Quantity of M10×65 · 4.6 · Dacrometpcs	—
Carbon Steel	4.6	Blackened	Quantity of M10×65 · 4.6 · Blackenedpcs	—
Carbon Steel	4.6	Phosphate	Quantity of M10×65 · 4.6 · Phosphatepcs	—
Carbon Steel	4.6	Plain	Quantity of M10×65 · 4.6 · Plainpcs	—
Carbon Steel	4.8	Zinc Plated	Quantity of M10×65 · 4.8 · Zinc Platedpcs	—
Carbon Steel	4.8	Hot Dip Galvanized	Quantity of M10×65 · 4.8 · Hot Dip Galvanizedpcs	—
Carbon Steel	4.8	Dacromet	Quantity of M10×65 · 4.8 · Dacrometpcs	—
Carbon Steel	4.8	Blackened	Quantity of M10×65 · 4.8 · Blackenedpcs	—
Carbon Steel	4.8	Phosphate	Quantity of M10×65 · 4.8 · Phosphatepcs	—
Carbon Steel	4.8	Plain	Quantity of M10×65 · 4.8 · Plainpcs	—

Plating adds thickness — state the finish on the order.

ISO 273 · ISO 2306

Hole	Diameter
Clearance hole	10.5 / 11 / 12 mm
Tap drill	8.5 mm

Standard, size, material, finish, quantity and destination are enough to begin.
