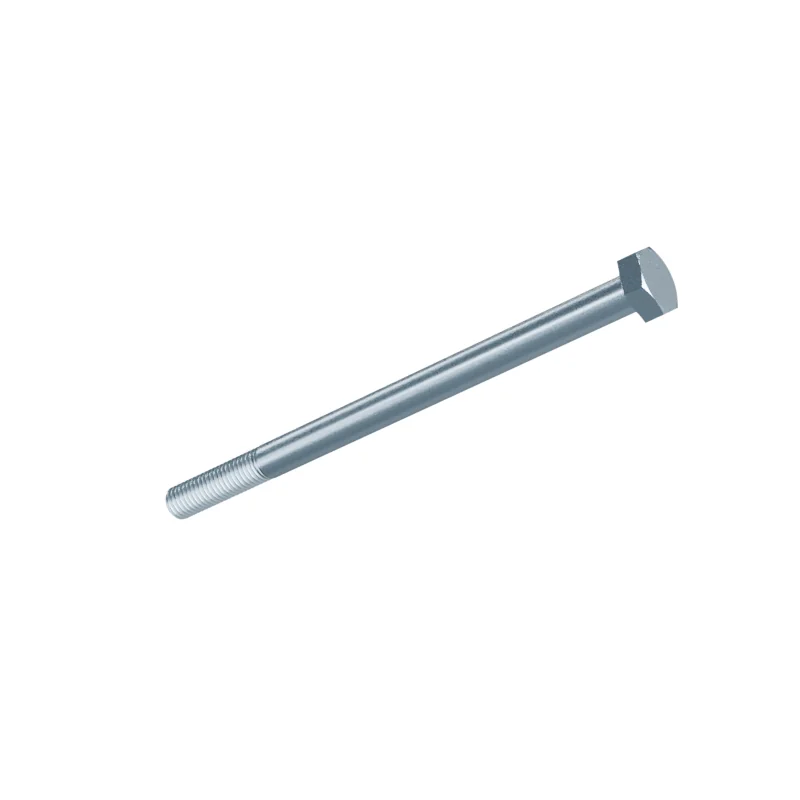

DIN 931 M10 x 160 Partial Thread Hex Bolt
In stock in 15 material, grade and finish combinations.
Dimensions at M10 x 160
mm · DIN 931 · 1987 · withdrawn| Dimension | Nominal | Min | Max | ISO 4014 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| P | Thread pitch | 1.5 | – | – | 1.5 |
| l | Length | 160 | – | – | 160 |
| s | Width across flats | – | – | 17 | 16 |
| e | Width across corners | – | 18.9 | – | 17.77 |
| k | Head height | 6.4 | – | – | 6.4 |
| b | Thread length | 32 | – | – | — |
- ISO 4014
- Values in bold differ from DIN 931.
- Length under head
- 160 mm · 158–162 mm to DIN 931 product grade BLonger than the DIN 931 dimension table (to 100 mm) — the standard itself provides for it
- Approx. weight
- ≈ 107.11 kg per 1 000 pieces · Bare steel, before coating and packing.9.3 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
