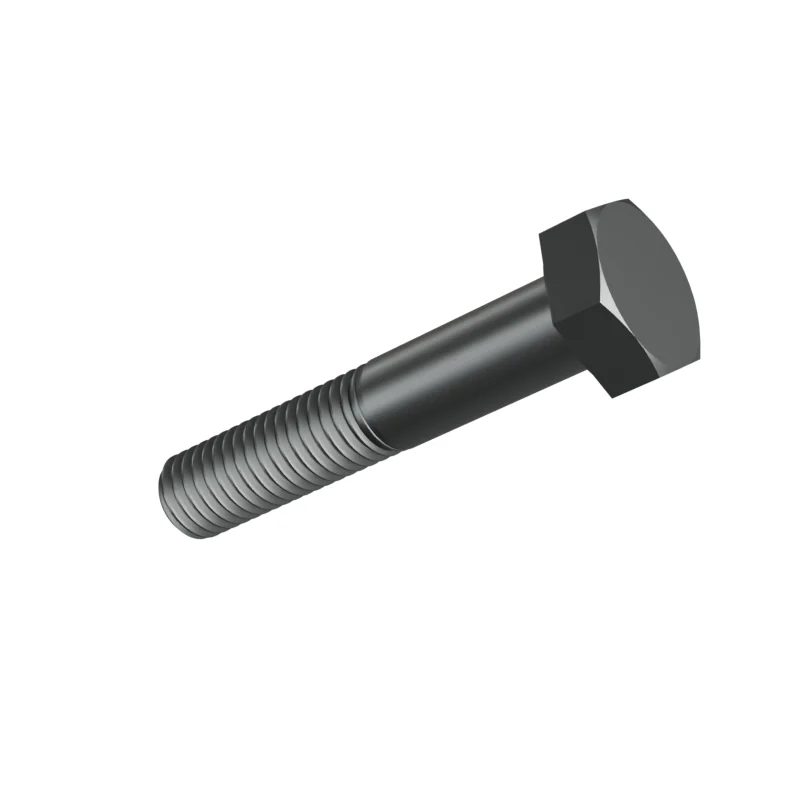

DIN 931 M10×55 Partial Thread Hex Bolt21 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 931 · 1987
- Thread
- M10 · pitch 1.5 mm
- Length under head
- 55 mm
- Drive
- 17 mm spanner · e 18.9 mm
- Head height
- 6.4 mm
- Clearance / tap drill
- 10.5 / 11 / 12 mm · 8.5 mm
- Weight
- 43.10 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering23.2 pieces per kg
Supplied to DIN 931 M10×55. ISO 4014 (s 16 mm against 17) and GB/T 5782 (s 16 mm against 17) at this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Full comparison →
Order M10×55
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
These are not identical at M10×55 — the difference is shown against each standard above. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 4.8 | Plain | — | |
| Carbon Steel | 4.8 | Zinc Plated | — | |
| Carbon Steel | 4.8 | Hot Dip Galvanized | — | |
| Carbon Steel | 4.8 | Dacromet | — | |
| Carbon Steel | 4.8 | Blackened | — | |
| Carbon Steel | 4.8 | Phosphate | — | |
| Carbon Steel | 8.8 | Plain | — | |
| Carbon Steel | 8.8 | Zinc Plated | — | |
| Carbon Steel | 8.8 | Hot Dip Galvanized | — | |
| Carbon Steel | 8.8 | Dacromet | — | |
| Carbon Steel | 8.8 | Blackened | — | |
| Carbon Steel | 8.8 | Phosphate | — | |
| Alloy Steel | 10.9 | Plain | — | |
| Alloy Steel | 10.9 | Zinc Plated | — | |
| Alloy Steel | 10.9 | Dacromet | — | |
| Alloy Steel | 10.9 | Blackened | — | |
| Alloy Steel | 10.9 | Phosphate | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — |
Dimensions at M10×55
| Dimension | Value |
|---|---|
| P | 1.5 mm |
| s | 17 mm |
| e | 18.9 mm |
| k | 6.4 mm |
| Weight | 43.10 kg / 1000 pcs |
| Pieces per kg | 23.2 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 10.5 / 11 / 12 mm |
| Tap drill | 8.5 mm |
Other lengths in M10
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| M10×45 | 37.37 | open |
| M10×50 | 40.24 | open |
| M10×55 | 43.10 | this page |
| M10×60 | 45.97 | open |
| M10×65 | 48.84 | open |
