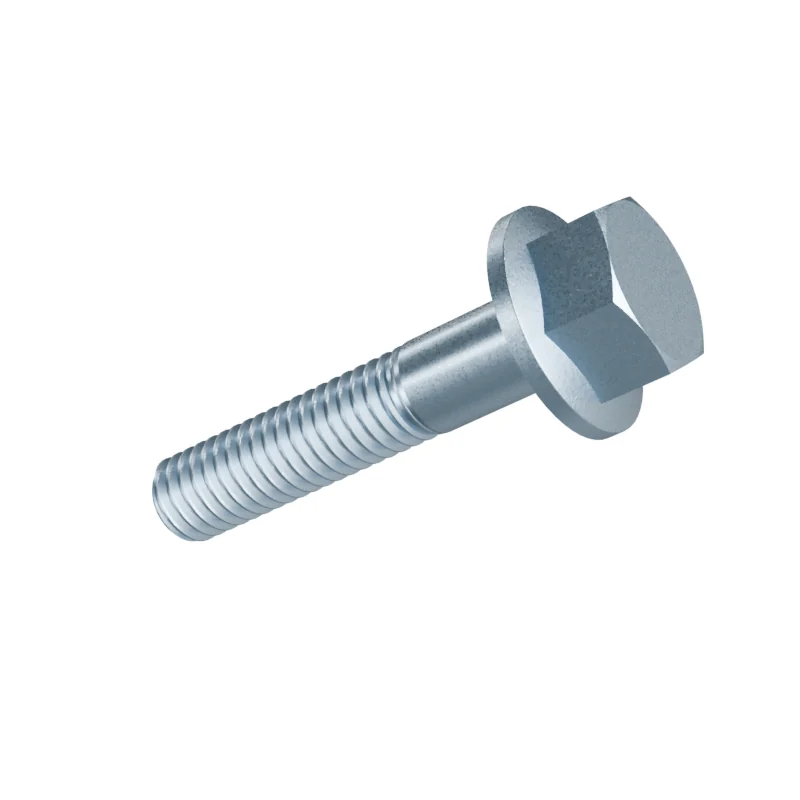

DIN 6921 M6 x 30 Hex Flange Bolt
In stock in 19 material, grade and finish combinations.
Dimensions at M6 x 30
mm · DIN 6921 · 1983-06 · withdrawn| Dimension | Nominal | Min | Max | ISO 4162 | |
|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 |
| P | Thread pitch | 1 | – | – | 1 |
| l | Length | 30 | – | – | 30 |
| s | Width across flats | – | – | 10 | 8 |
| e | Width across corners | – | 10.95 | – | 8.56 |
| dc | Flange diameter | 14.2 | – | – | 13.6 |
| k | Head height | 6.6 | – | – | 6.8 |
- ISO 4162
- Values in bold differ from DIN 6921.
- Length under head
- 30 mm · 29.58–30.42 mm to DIN 6921 product grade A
- Approx. weight
- ≈ 10.24 kg per 1 000 pieces · Bare steel, before coating and packing.97.7 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
