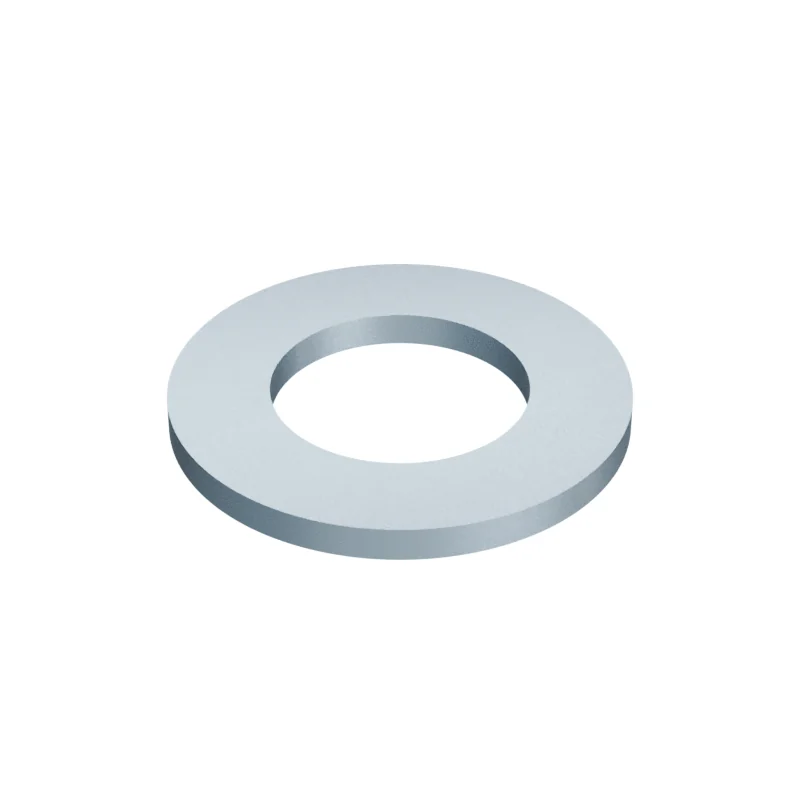

DIN 125 M36 Plain Washer
In stock in 16 material, grade and finish combinations.
Dimensions at M36
mm · DIN 125 · 1990-03 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 7089 | |
|---|---|---|---|---|---|
| d | Thread size | M36 | – | – | M36 |
| d1 | Inner diameter | 37 | – | – | 37 |
| d2 | Outer diameter | 66 | – | – | 66 |
| h | Washer thickness | 5 | – | – | 4.4–5.6 |
| Approx. mass | 92.1 | – | – | — |
- ISO 7089
- Values in bold differ from DIN 125.
- Approx. weight
- ≈ 92.10 kg per 1 000 pieces · Bare steel, before coating and packing.10.9 pieces per kg
