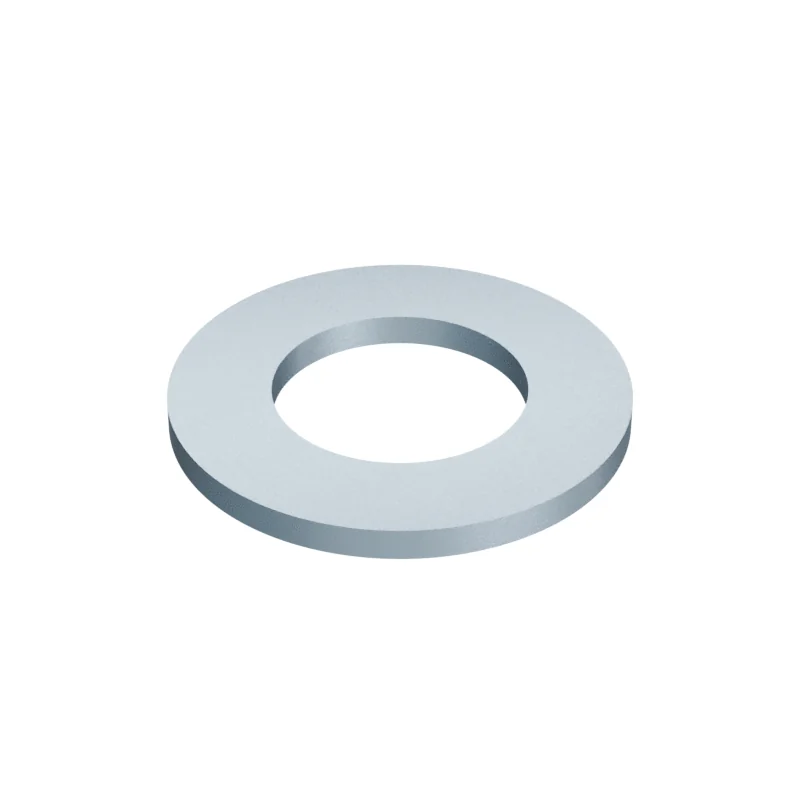

DIN 125 M30 Plain Washer
In stock in 16 material, grade and finish combinations.
Dimensions at M30
mm · DIN 125 · 1990-03 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 7089 | |
|---|---|---|---|---|---|
| d | Thread size | M30 | – | – | M30 |
| d1 | Inner diameter | 31 | – | – | 31 |
| d2 | Outer diameter | 56 | – | – | 56 |
| h | Washer thickness | 4 | – | – | 3.7–4.3 |
| Approx. mass | 53.6 | – | – | — |
- ISO 7089
- Values in bold differ from DIN 125.
- Approx. weight
- ≈ 53.60 kg per 1 000 pieces · Bare steel, before coating and packing.18.7 pieces per kg
