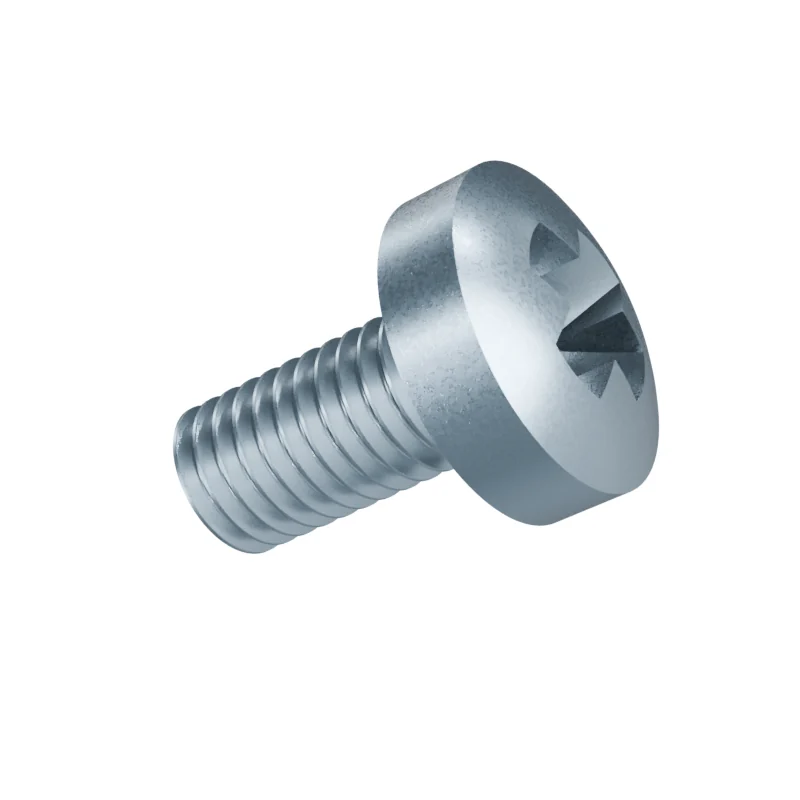

DIN 7985 M8 x 16 Pan Head Screw
In stock in 14 material, grade and finish combinations.
Dimensions at M8 x 16
mm · DIN 7985 · 1990-08 · withdrawn| Dimension | Nominal | Min | Max | ISO 7045 | |
|---|---|---|---|---|---|
| d | Thread size | M8 | – | – | M8 |
| P | Thread pitch | 1.25 | – | – | 1.25 |
| Length | 16 | – | – | 16 | |
| dk | Head diameter | 16 | – | – | 16 |
| k | Head height | 6 | – | – | 6 |
| b | Thread length | 34 | – | – | 38 |
- ISO 7045
- Values in bold differ from DIN 7985.
- Length under head
- 16 mm
- Approx. weight
- ≈ 12.33 kg per 1 000 pieces · Bare steel, before coating and packing.81.1 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine8.4 mm
Clearance hole · medium9 mm
Clearance hole · coarse10 mm
Tap drill6.8 mm
