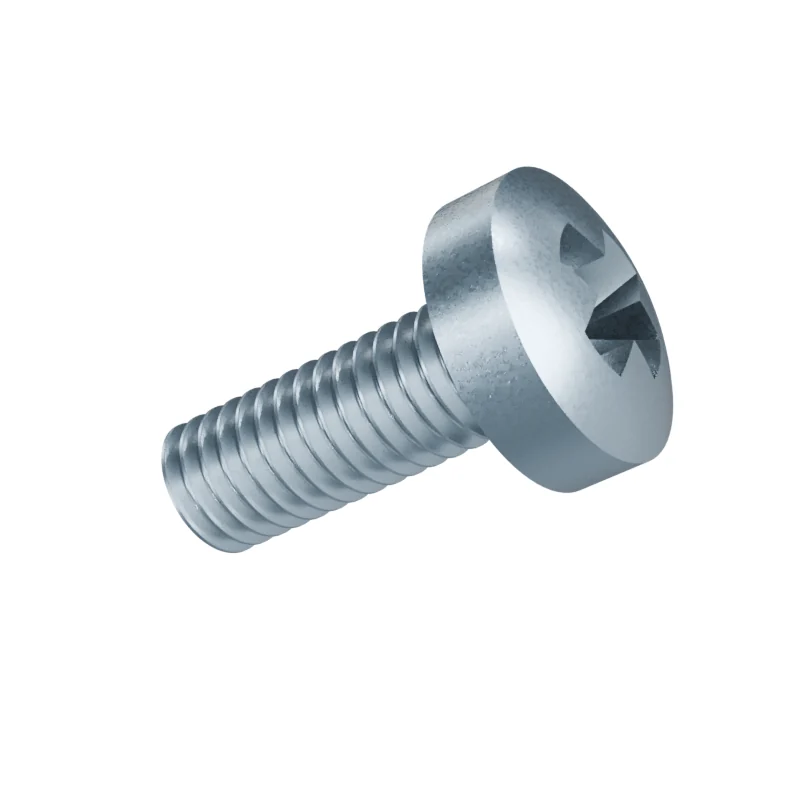

DIN 7985 M6 x 16 Pan Head Screw
In stock in 14 material, grade and finish combinations.
Dimensions at M6 x 16
mm · DIN 7985 · 1990-08 · withdrawn| Dimension | Nominal | Min | Max | ISO 7045 | |
|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 |
| P | Thread pitch | 1 | – | – | 1 |
| Length | 16 | – | – | 16 | |
| dk | Head diameter | 12 | – | – | 12 |
| k | Head height | 4.6 | – | – | 4.6 |
| b | Thread length | 28 | – | – | 38 |
- ISO 7045
- Values in bold differ from DIN 7985.
- Length under head
- 16 mm
- Approx. weight
- ≈ 5.94 kg per 1 000 pieces · Bare steel, before coating and packing.168 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
