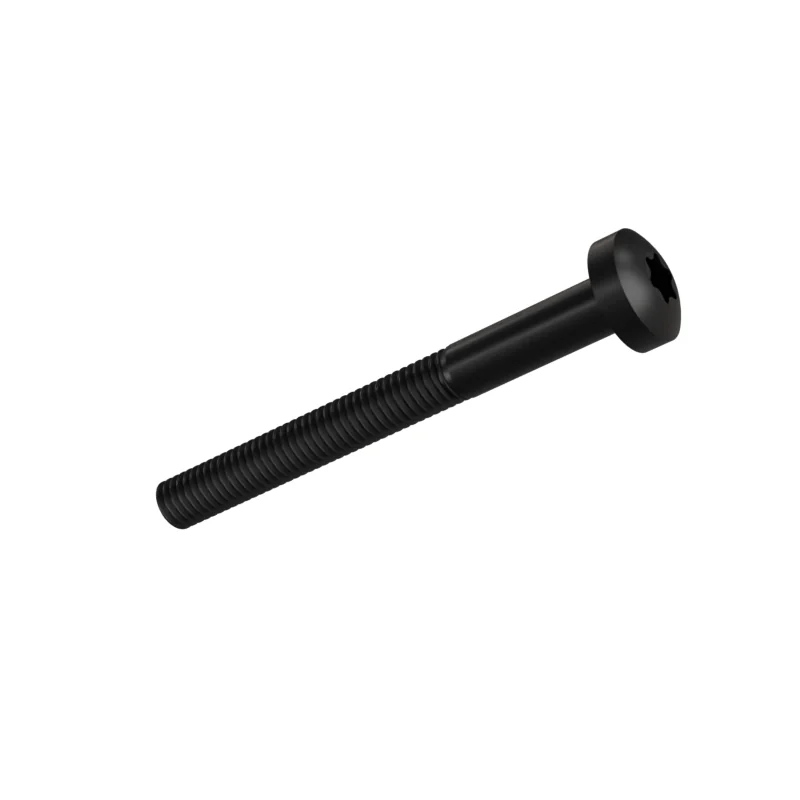

ISO 14583 M6 x 60 Pan Head Screw
In stock in 7 material, grade and finish combinations.
Dimensions at M6 x 60
mm · ISO 14583 · 2011 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M6 | – | – |
| P | Thread pitch | 1 | – | – |
| l | Length | 60 | – | – |
| dk | Head diameter | 12 | 11.57 | – |
| k | Head height | 4.6 | 4.3 | – |
| b | Thread length | 38 | – | – |
| r | Radius | – | 0.25 | – |
| rf | Head radius (ref) | 10 | – | – |
| Recess number | 30 | – | – | |
| A | Hexalobular socket A (ref) | 5.6 | – | – |
| t | Socket depth | – | 2.02 | 2.42 |
- Length under head
- 60 mm · 59.4–60.6 mm to ISO 14583 product grade A
- Approx. weight
- ≈ 13.50 kg per 1 000 pieces · Bare steel, before coating and packing.74.1 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
