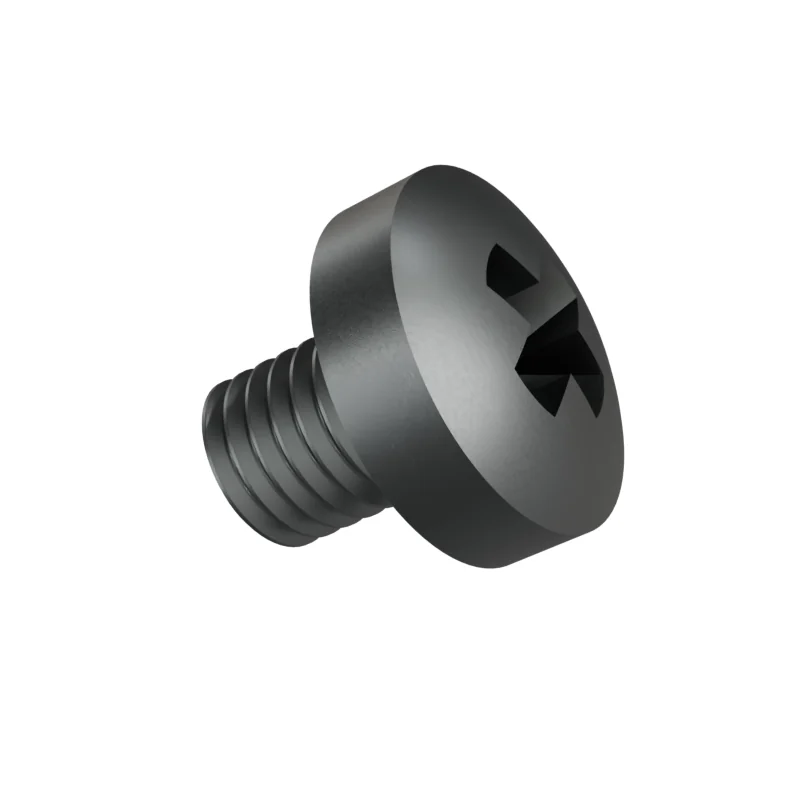

DIN 7985 M10 x 12 Pan Head Screw
In stock in 10 material, grade and finish combinations.
Dimensions at M10 x 12
mm · DIN 7985 · 1990-08 · withdrawn| Dimension | Nominal | Min | Max | ISO 7045 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| P | Thread pitch | 1.5 | – | – | 1.5 |
| Length | 12 | – | – | 12 | |
| dk | Head diameter | 20 | – | – | 20 |
| k | Head height | 7.5 | – | – | 7.5 |
| b | Thread length | 40 | – | – | 38 |
- ISO 7045
- Values in bold differ from DIN 7985.
- Length under head
- 12 mm
- Approx. weight
- ≈ 20.16 kg per 1 000 pieces · Bare steel, before coating and packing.49.6 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
