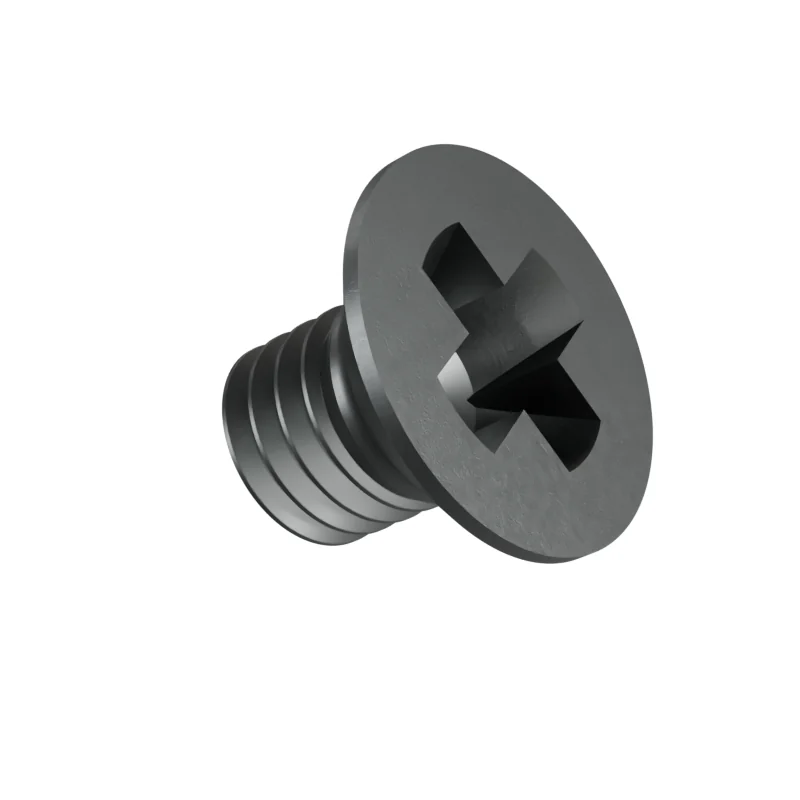

DIN 965 M6×8 Countersunk Screw4 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 965 · 1990-08
- Thread
- M6 · pitch 1 mm
- Length under head
- 8 mm
- Head height
- 3 mm
- Clearance / tap drill
- 6.4 / 6.6 / 7 mm · 5 mm
- Weight
- 2.26 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering443 pieces per kg
Supplied to DIN 965 M6×8. ISO 7046 (dk 11.3 mm against 11) at this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Full comparison →
Order M6×8
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
These are not identical at M6×8 — the difference is shown against each standard above. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 4.8 | Plain | — | |
| Carbon Steel | 4.8 | Zinc Plated | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A2-70 | Plain | — |
Dimensions at M6×8
| Dimension | Value |
|---|---|
| P | 1 mm |
| k | 3 mm |
| Weight | 2.26 kg / 1000 pcs |
| Pieces per kg | 443 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 6.4 / 6.6 / 7 mm |
| Tap drill | 5 mm |
Other lengths in M6
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| M6×8 | 2.26 | this page |
| M6×10 | 2.61 | open |
| M6×12 | 2.96 | open |
| M6×16 | 3.67 | open |
| M6×20 | 4.38 | open |
