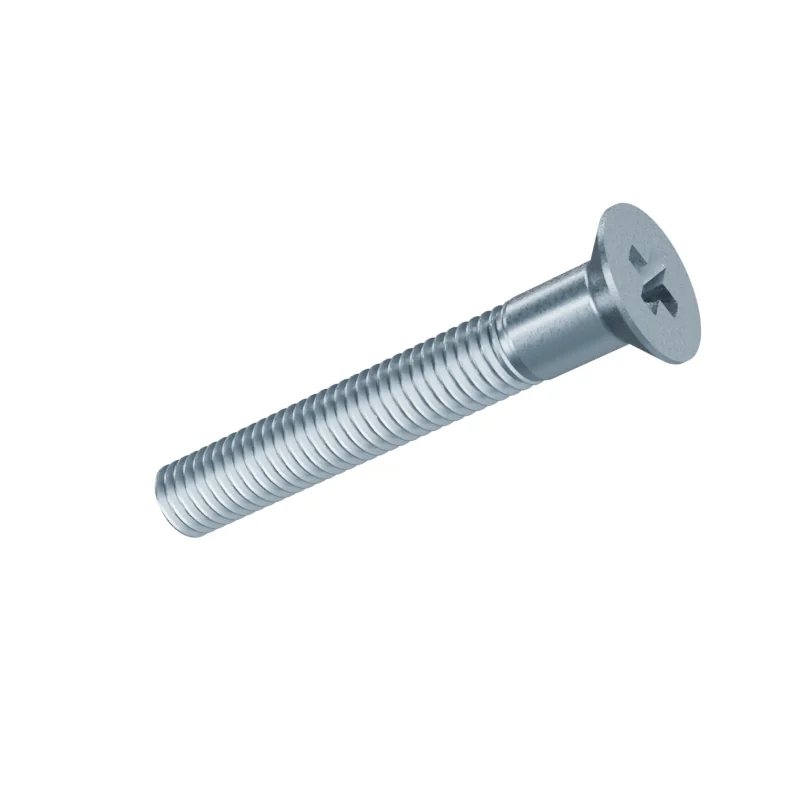

DIN 965 M5 x 35 Countersunk Screw
In stock in 5 material, grade and finish combinations.
Dimensions at M5 x 35
mm · DIN 965 · 1990-08 · withdrawn| Dimension | Nominal | Min | Max | ISO 7046 | |
|---|---|---|---|---|---|
| d | Thread size | M5 | – | – | M5 |
| P | Thread pitch | 0.8 | – | – | 0.8 |
| l | Length | 35 | – | – | 35 |
| dk | Head diameter | 9.2 | – | – | 9.3 |
| k | Head height | 2.5 | – | – | 2.7 |
| b | Thread length | 25 | – | – | 38 |
- ISO 7046
- Values in bold differ from DIN 965.
- Length incl. head
- 35 mm
- Approx. weight
- ≈ 4.82 kg per 1 000 pieces · Bare steel, before coating and packing.207 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine5.3 mm
Clearance hole · medium5.5 mm
Clearance hole · coarse5.8 mm
Tap drill4.2 mm
