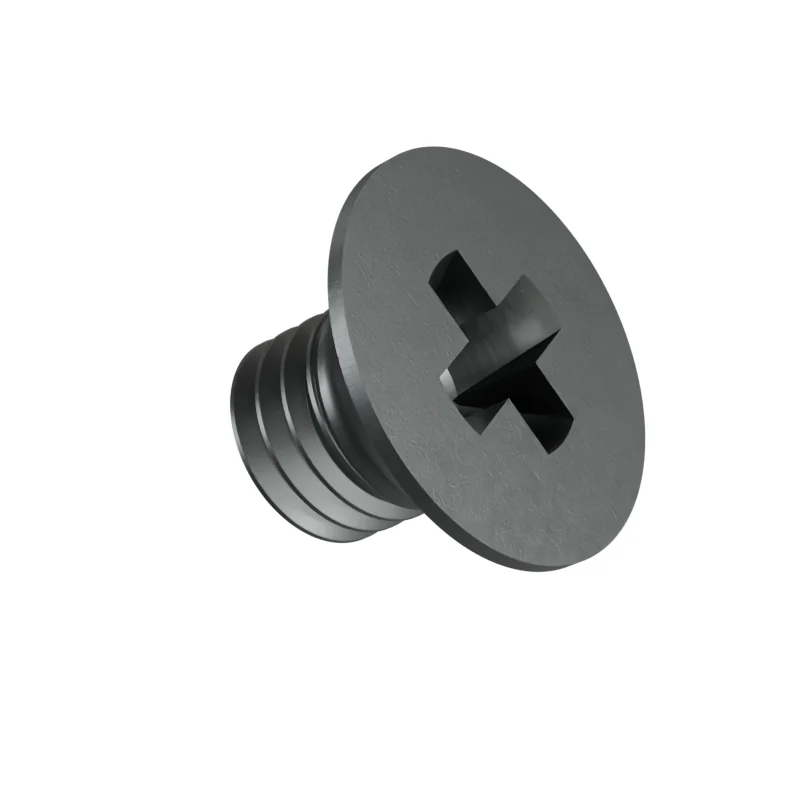

DIN 965 M5×6 Countersunk Screw4 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 965 · 1990-08
- Thread
- M5 · pitch 0.8 mm
- Length under head
- 6 mm
- Head height
- 2.5 mm
- Clearance / tap drill
- 5.3 / 5.5 / 5.8 mm · 4.2 mm
- Weight
- 1.23 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering811 pieces per kg
Supplied to DIN 965 M5×6. ISO 7046 (dk 9.3 mm against 9.2) at this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Full comparison →
Order M5×6
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
These are not identical at M5×6 — the difference is shown against each standard above. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 4.8 | Plain | — | |
| Carbon Steel | 4.8 | Zinc Plated | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A2-70 | Plain | — |
Dimensions at M5×6
| Dimension | Value |
|---|---|
| P | 0.8 mm |
| k | 2.5 mm |
| Weight | 1.23 kg / 1000 pcs |
| Pieces per kg | 811 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 5.3 / 5.5 / 5.8 mm |
| Tap drill | 4.2 mm |
Other lengths in M5
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| M5×6 | 1.23 | this page |
| M5×8 | 1.48 | open |
| M5×10 | 1.73 | open |
| M5×12 | 1.98 | open |
| M5×16 | 2.47 | open |
