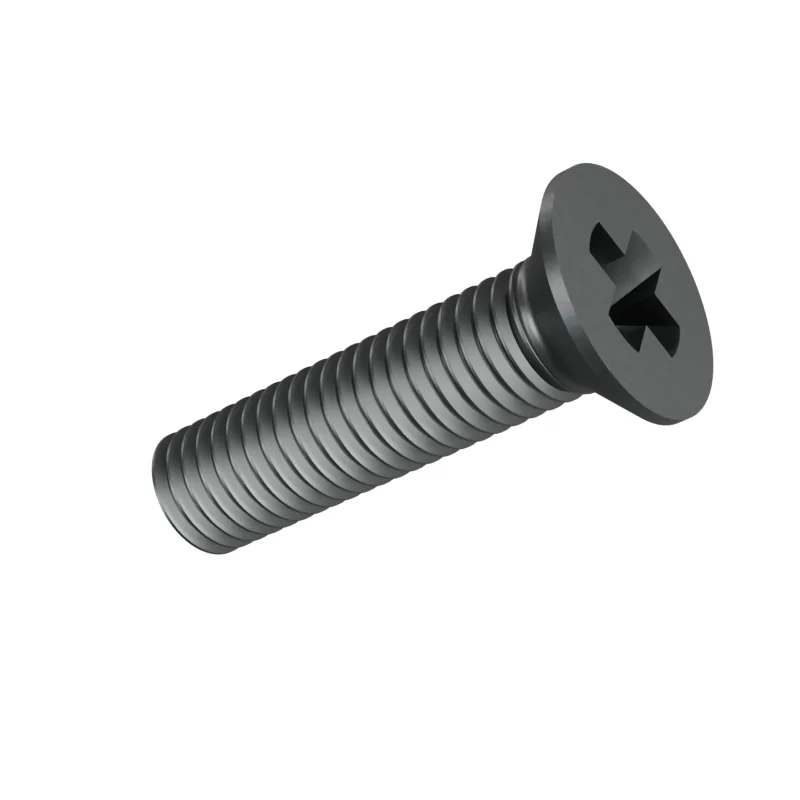

DIN 965 M10×40 Countersunk Screw4 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 965 · 1990-08
- Thread
- M10 · pitch 1.5 mm
- Length under head
- 40 mm
- Head height
- 5 mm
- Clearance / tap drill
- 10.5 / 11 / 12 mm · 8.5 mm
- Weight
- 23.79 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering42.0 pieces per kg
Supplied to DIN 965 M10×40. ISO 7046 (dk 18.3 mm against 18) at this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Full comparison →
Order M10×40
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
These are not identical at M10×40 — the difference is shown against each standard above. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 4.8 | Plain | — | |
| Carbon Steel | 4.8 | Zinc Plated | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A2-70 | Plain | — |
Dimensions at M10×40
| Dimension | Value |
|---|---|
| P | 1.5 mm |
| k | 5 mm |
| Weight | 23.79 kg / 1000 pcs |
| Pieces per kg | 42.0 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 10.5 / 11 / 12 mm |
| Tap drill | 8.5 mm |
