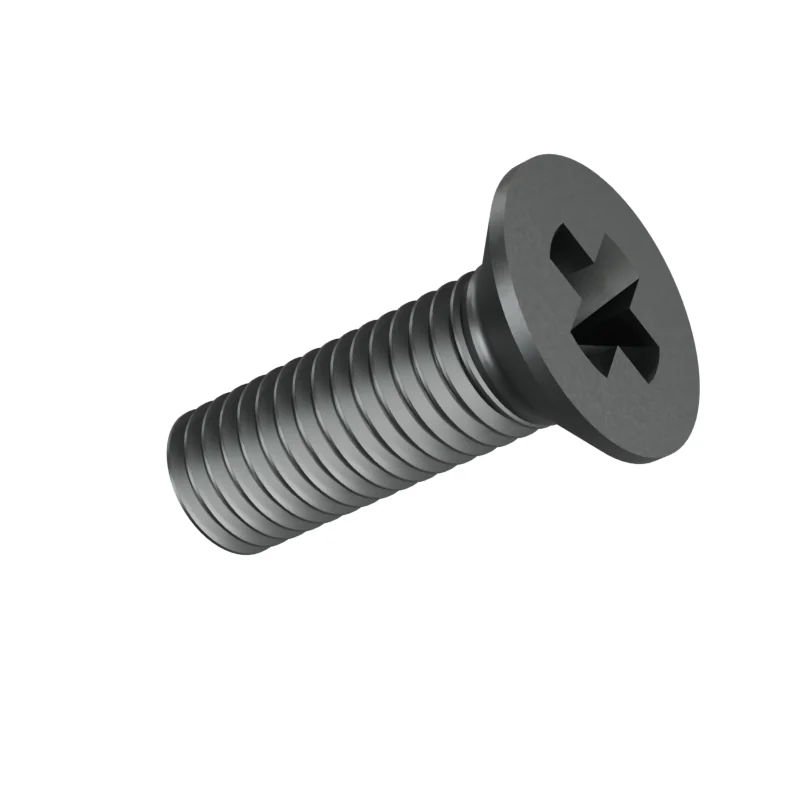

DIN 965 M10 x 30 Countersunk Screw
In stock in 4 material, grade and finish combinations.
Dimensions at M10 x 30
mm · DIN 965 · 1990-08 · withdrawn| Dimension | Nominal | Min | Max | ISO 7046 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| P | Thread pitch | 1.5 | – | – | 1.5 |
| l | Length | 30 | – | – | 30 |
| dk | Head diameter | 18 | – | – | 18.3 |
| k | Head height | 5 | – | – | 5 |
| b | Thread length | 40 | – | – | 38 |
- ISO 7046
- Values in bold differ from DIN 965.
- Length incl. head
- 30 mm
- Approx. weight
- ≈ 18.76 kg per 1 000 pieces · Bare steel, before coating and packing.53.3 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
