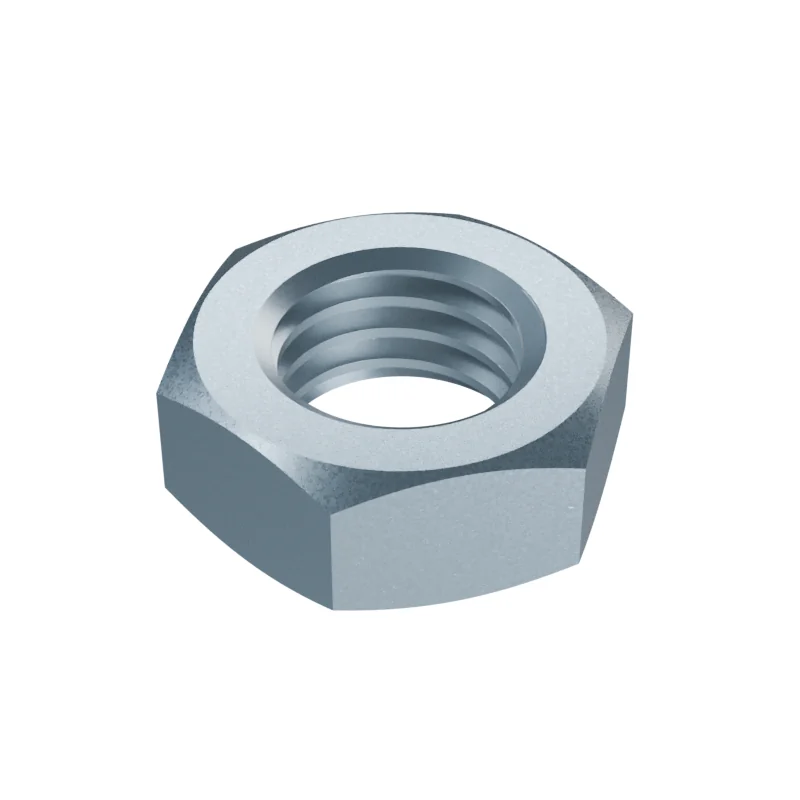

ASME B18.2.2 5/8-11 UNC Hex Nut and Hex Jam Nut
In stock in 6 material, grade and finish combinations.
Dimensions at 5/8-11 UNC
in · ASME B18.2.2 · dimensions from 2015 · current edition 2022| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 5/8-11 UNC | – | – |
| Basic major diameter | 0.625 | – | – | |
| TPI | Threads per inch | 11 | – | – |
| Thread series | UNC | – | – | |
| Thread class | 2B | – | – | |
| F | Width across flats | – | 0.922 | 0.938 |
| G | Width across corners | – | 1.051 | 1.083 |
| H | Nut height | 0.559 | 0.535 | 0.559 |
| H₁ | Jam nut thickness | – | 0.363 | 0.387 |
- Approx. weight
- ≈ 36.66 kg per 1 000 pieces · Bare steel, before coating and packing.27.3 pieces per kg
