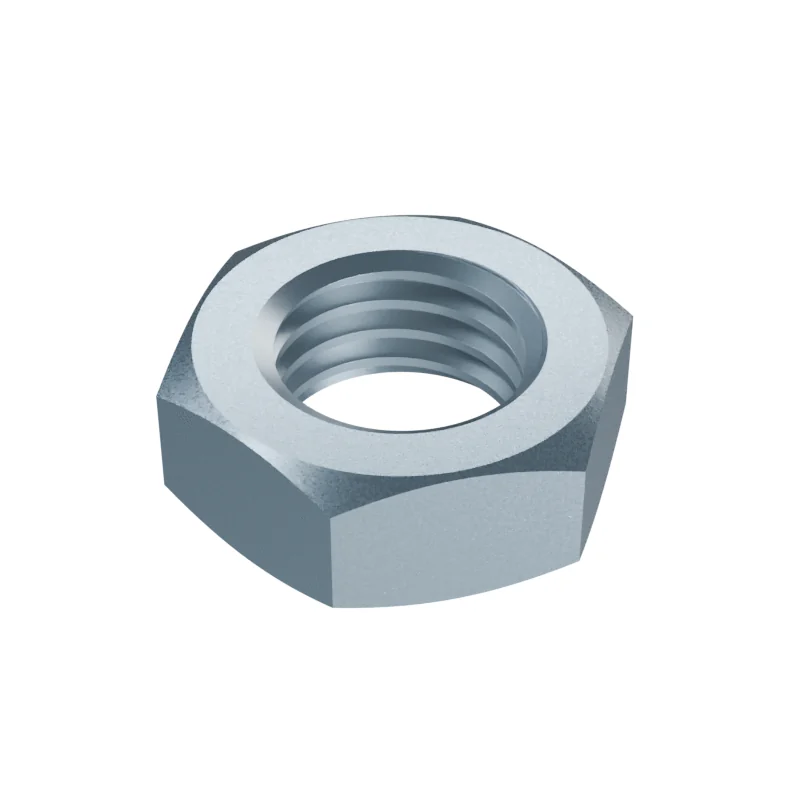

ASME B18.2.2 3/4-10 UNC Hex Nut and Hex Jam Nut
In stock in 6 material, grade and finish combinations.
Dimensions at 3/4-10 UNC
in · ASME B18.2.2 · dimensions from 2015 · current edition 2022| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 3/4-10 UNC | – | – |
| Basic major diameter | 0.75 | – | – | |
| TPI | Threads per inch | 10 | – | – |
| Thread series | UNC | – | – | |
| Thread class | 2B | – | – | |
| F | Width across flats | – | 1.088 | 1.125 |
| G | Width across corners | – | 1.24 | 1.299 |
| H | Nut height | 0.665 | 0.617 | 0.665 |
| H₁ | Jam nut thickness | – | 0.398 | 0.446 |
- Approx. weight
- ≈ 61.83 kg per 1 000 pieces · Bare steel, before coating and packing.16.2 pieces per kg
