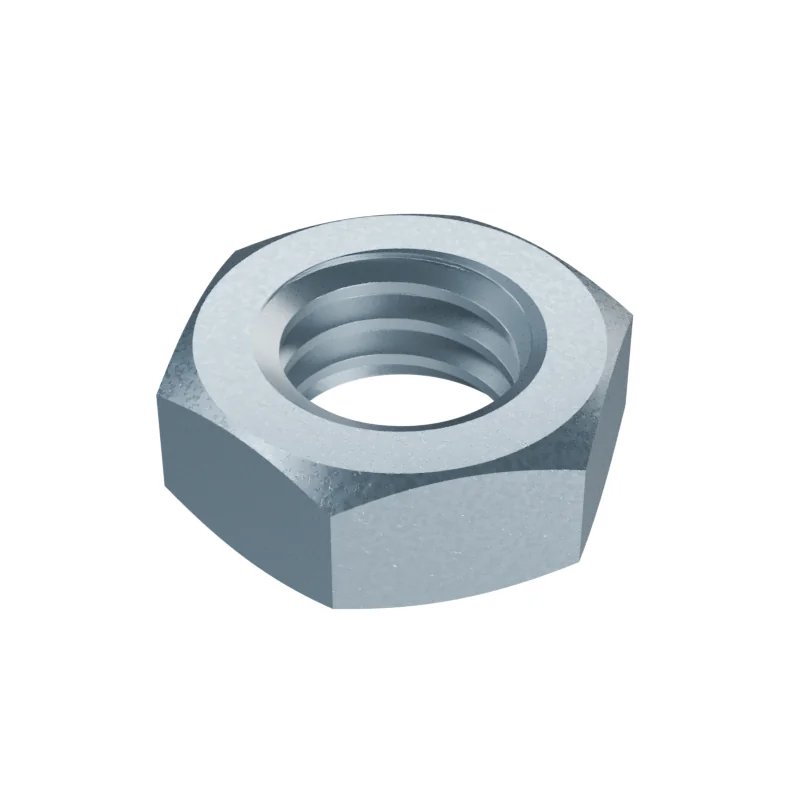

ASME B18.2.2 3/8-16 UNC Hex Nut and Hex Jam Nut
In stock in 6 material, grade and finish combinations.
Dimensions at 3/8-16 UNC
in · ASME B18.2.2 · dimensions from 2015 · current edition 2022| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 3/8-16 UNC | – | – |
| Basic major diameter | 0.375 | – | – | |
| TPI | Threads per inch | 16 | – | – |
| Thread series | UNC | – | – | |
| Thread class | 2B | – | – | |
| F | Width across flats | – | 0.551 | 0.563 |
| G | Width across corners | – | 0.628 | 0.65 |
| H | Nut height | 0.337 | 0.32 | 0.337 |
| H₁ | Jam nut thickness | – | 0.21 | 0.227 |
- Approx. weight
- ≈ 8.15 kg per 1 000 pieces · Bare steel, before coating and packing.123 pieces per kg
